Soil Stabilizer

Description Specifications Scope of Application FAQ Download

Description

VASA JG-S1 Soil Stabilizer is an organic-inorganic composite soil stabilizing additive that can significantly improve the charge polarity of powder particle surfaces. It reduces the porosity and water absorption rate of stabilized soil, enhancing its dry shrinkage and freeze-thaw cycle performance. By using a small amount of JG-S1 soil stabilizer along with binder materials to replace traditional road construction materials, it addresses issues such as high usage of traditional cementitious materials, dry shrinkage-induced cracking, and poor water stability. Additionally, it offers advantages such as significant solid waste disposal capacity and low construction costs.

Specifications

PROPERTIES

The product performance complies with the requirements of CJ/T 486-2015 "Soil Stabilizer Additives."

The specific technical specifications are as follows:

Homogeneity Index ：

No.	Item	Technical Requirements
1	Appearance	Light yellow or dark brown liquid
2	Solid content/%	65.0±2.0（65-80℃ Vacuum drying method）
2	Solid content/%	45.0±1（105℃ Oven drying method）
3	pH value	8.0 ± 1.0
4	Chloride ion content/%	Less than 0.1

Specimen Index Properties

No.	item		Technical Requirements
1	Coefficient of influence on setting time/%		≥100
2	Unconfined compressive strength ratio/%		≥120
3	Water stability coefficient ratio/%		≥105
4	Water absorption rate/%		≤3
5	28-day freeze-thaw performance	Mass Loss Rate/%	≤5
		Freeze-thaw resistance index/%	≥80

TECHNICAL INFORMATION

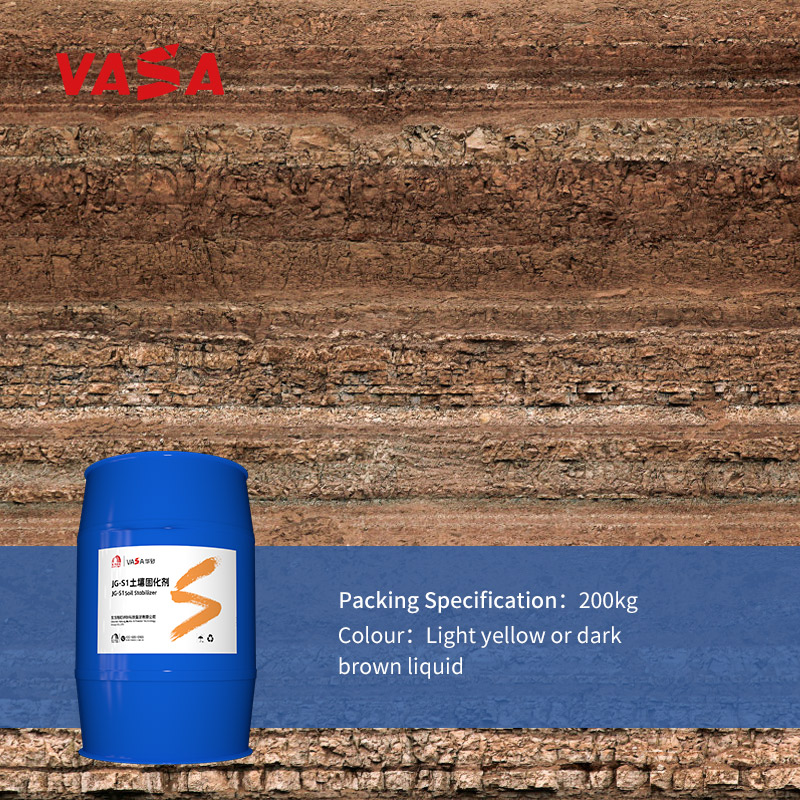

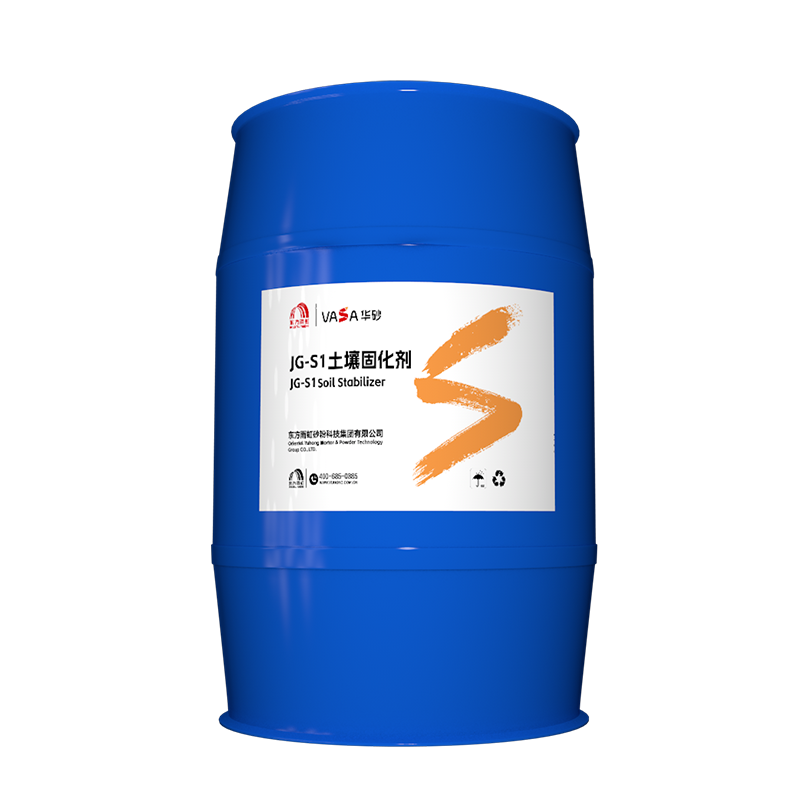

Product Technical Parameter	Packaging	200kg/pail
	State of matter	Pale yellow or dark brown liquid
	Solid Content	65.0±2.0（65-80℃ Vacuum drying method）
	Solid Content	45.0±1（105℃ Oven drying method）
	Shelf Life	Store in a cool, dry place in unopened packaging. The shelf life is 12 months.
	Standard	CJ/T 486-2015 “Soil Stabilizer Additives”
Application Technology Parameters	Application Method	Road mixing or plant mixing method
	Application Environment	Working temperature 5-35°C; application is prohibited during rainy days or when wind exceeds level 5
	Recommended Usage	0.05%-0.08% of stabilizer by weight

APPLICATION INSTRUCTIONS

Road Mixing Application Method:

· Prepare the aqueous solution by mixing with the water for blending. The recommended dosage is 0.05%-0.08% of the stabilizer.

· Mix the stabilized materials with cement, lime, and fly ash in a certain proportion, then spray the stabilizer solution and mix it 2-3 more times. After that, use a roller to compact, with a compaction rate of no less than 96%.

· After the mixture is compacted and passes the inspection, curing can begin. Curing can be done using watering, geotextile, or emulsified asphalt curing. The curing period should be no less than 7 days.

Plant Mixing Application Method

· The plant mixing application method can refer to the cement-stabilized crushed stone mixing and production processes. Specific procedures should follow the relevant requirements of JTG/T F20-2015 “Technical Specifications for Road Pavement Subbase Application.”

ADVANTAGES

· Increases density and strength

· Reduces water absorption and improves stability

· Reduces shrinkage and minimizes cracks

· Simplifies procedures and reduces costs

Scope of Application

· Suitable for stabilizing/solidifying soils of various types (sand, silt, clay).

· Suitable for stabilizing/solidifying industrial solid wastes (iron tailings, red mud, graphite tailings, sawdust, etc.).

· Suitable for stabilized soil base layers, sub-base layers, and cushion layers in highways and urban roads of all grades.

· Suitable for stabilized soil base and surface layers in rural roads and scenic area roads.

· Suitable for stabilized soil base and surface layers in parking lots and floors.

· Suitable for stabilized soil base, sub-base, cushion, and surface layers in heavy-duty roads in various mining areas.

FAQ

Q1: What are the main product series of VASA?

VASA's main product lines include tile and stone pasting series, waterproof mortar series, cement-based grouting material series, wall leveling and skimcoat series, inorganic flooring series, soil solidification products, etc.
Q2: Where is VASA's main production base?

VASA's main production bases are distributed throughout China, and there is also a factory in Johor Bahru, Malaysia.
Q3: What is VASA's production capacity?

The production capacity of VASA dry powder mortar products is approximately 7 million tons.
Q4: The production capacity of VASA dry powder mortar products is approximately 7 million tons.

The reference delivery time for VASA products is seven days within China, sea freight to South East Asia: 7-10 days; Europe/Americas: ~25–35 days; Latin America: ~20-45 days
Q5: Has VASA's product been certified for environmental protection? What are the certifications?

VASA's products have undergone environmental certification, including German GEV-EMICODE certification and French A+ certification.
Q6: What is the main packaging form of VASA products?

VASA's products are mainly packaged in valve pockets and transported on wooden pallets.
Q7: What are the auxiliary installation and construction supports?

We can provide construction videos of our main products to guide their construction.
