1K Highly Water-Resistant Waterproofing Coating

Description Specifications Scope of Application FAQ Download

Description

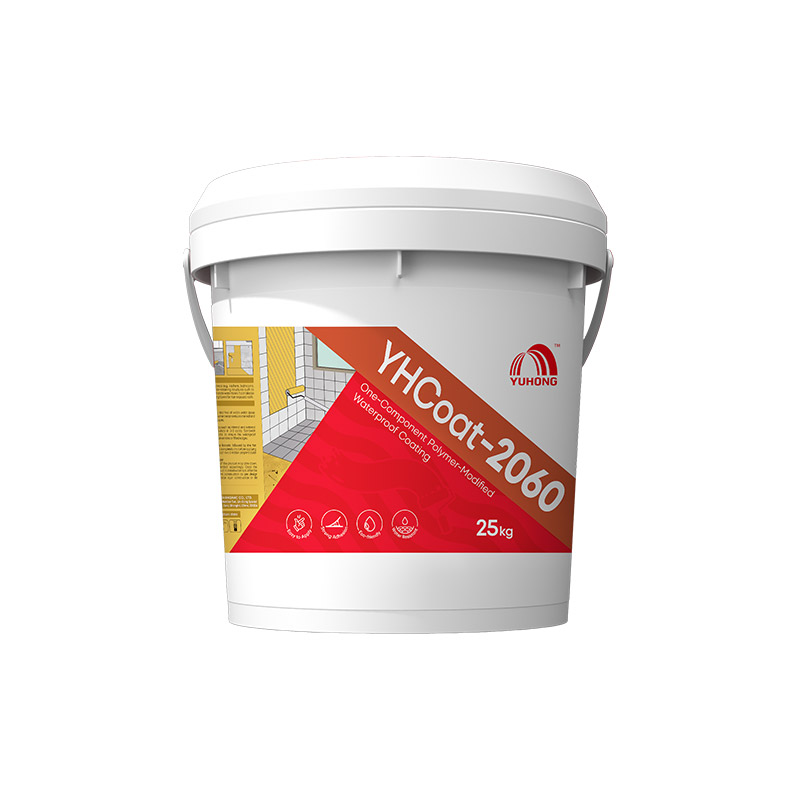

YHCoat-2060 is based on a highly active polymer emulsion as the main film-forming substance, adding a variety of special inorganic components, supplemented by a variety of functional additives, to prepare a one-component waterproof coating with high solid content, water resistance and excellent construction performance, mainly used in kitchens, bathrooms and pools.

Specifications

CHARACTERISTICS AND PACKAGING

Item	Data
Appearance	Viscous liquid
Color	Blue
Density	1.5-1.7 kg/L
Solid Content by Weight	78-81 %
Packing Size	25 kg per plastic pail

APPLICATION INSTRUCTIONS

Items	Description
Consumption*	≈2.0kg for 1mm dry film 0.30-0.35 m2 / kg, 8-9 m2 / set of 25kg
Recommended thickness	1.5mm by 2-3 coats 1.0-1.5kg/m2/coat, 0.5-0.8mm dry film thickness
Ambient air temperature	5 ℃ min / +40℃ max
Relative air humidity	<85%
Substrate temperature	5 °C min. / +40 °C max. ≥ 3 °C above dew point, beware of condensation

* This figure is given for guidance only, as actual quantities used will vary depending on the substrate condition and surface profile on site.

PROPERTIES

Description	Test Methods	Typical Values
Tensile Strength / MPa	ASTM D412	≥1.7
Elongation at Break / %	ASTM D412	≥85
Hardness (Shore D)	ASTM D2240	≥35
Pull-off Adhesion to Concrete / MPa	ASTM D7234	≥1.2
Low Temperature Flexure (-10℃)	ASTM D522	No Cracks
Crack Bridging (23℃) / mm	ASTM C836	≈2
Water Penetration Test (5 bar, 72hrs) / mm	BS EN 12390-8	≈0
Water absorption / %	ASTM D471	≈3.5
Thermal conductivity / [W/m·K]	ASTM D5930	≈0.7
VOC g/L	ISO 11890-2	≈0

Note: The above data were tested under standard conditions (temperature 23 °C ± 2 °C, relative humidity 50% ± 10%).

ADVANTAGES

· The unique keyed finish enhances the bonding strength with tile system.

· Water-based, safe, environmentally friendly, and low VOC.

· Fast drying: The coating dries quickly and the construction period is short;

· Excellent adhesion performance; Maintains flexibility and performance in cold conditions.

· Excellent long-term water resistance;

· Ready to use after opening the pail.

Scope of Application

Suitable for new construction and refurbishment projects with waterproof requirements, especially suitable for wet rooms, such as kitchens, bathrooms, pools, and other areas with high moisture exposure.

FAQ

Q1: What is the recommended construction temperature for water-based products?

Application temperature +5°C to +35°C
Q2: What is the recommended storage temperature for water-based products?

+5°C to +35°C
Q3: The requirements of water-based products for the base layer？

Ensure that the substrate is firm, clean, dry and free from contaminants such as dirt, oil, grease, old paint and loose materials
Q4: Can the base be damp during the construction of water-based products？

It can be damp but there must be no standing water
Q5: What is the greatest advantage of water-based products？

Safety, health and environmental protection
