Flexible Cementitious Waterproofing Coating (2K)

Description Specifications Scope of Application FAQ Download

Description

YHCoat-1080 is a two-component waterproof coating. Component A consists of high-quality modified polymer emulsion and various additives. Component B consists of iron-rich containing and high-alumina cement. YHCoat-1080 has outstanding performance and forms seamless membranes.

Specifications

**Packing and Specifications**

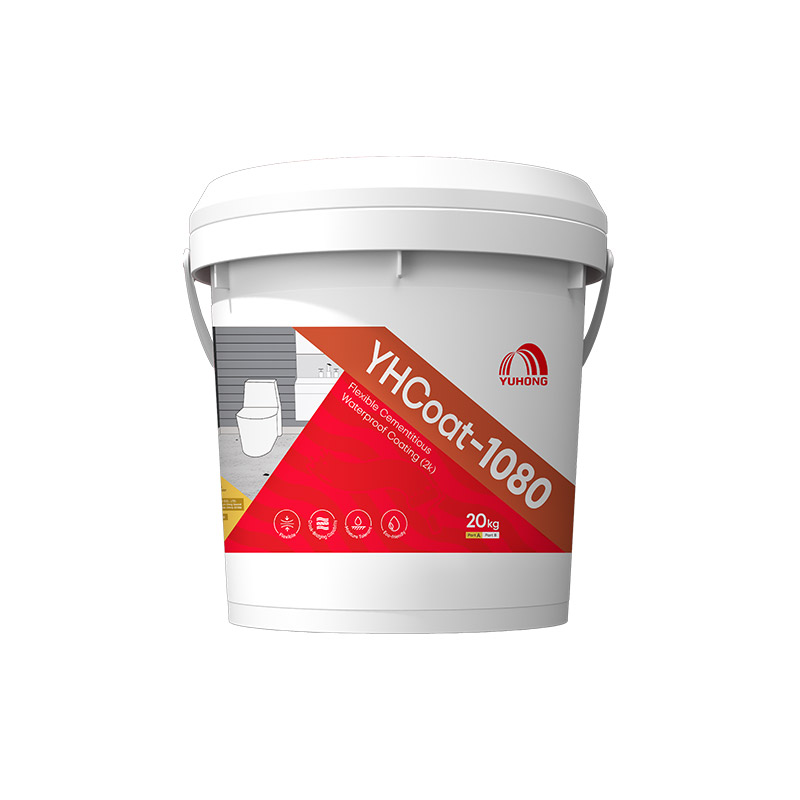

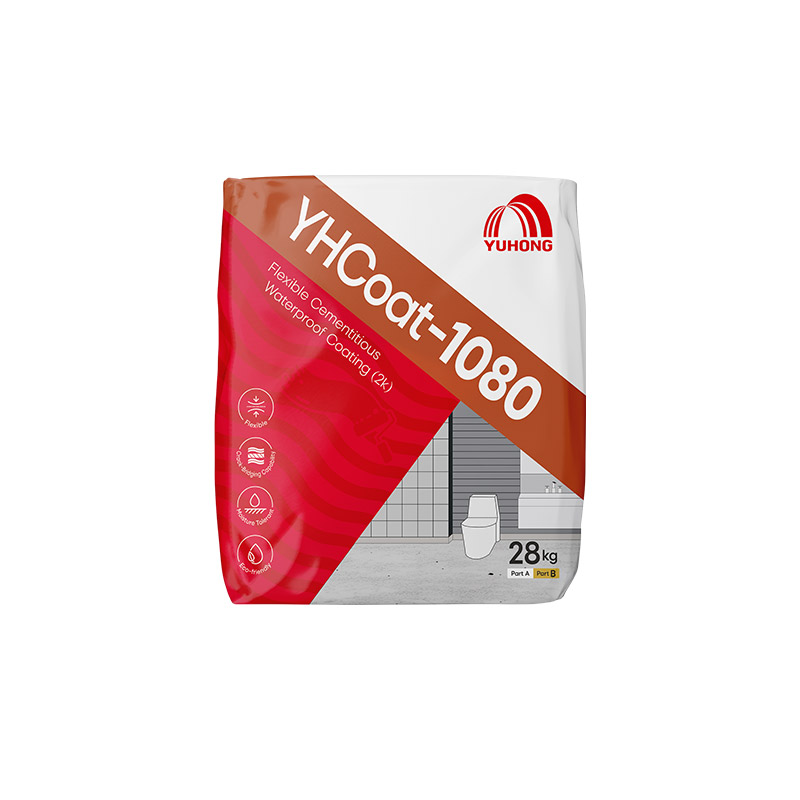

Item	Component A	Component B
Appearance	Thick liquid	Powder
Color	White	White
Package	Plastic pail	Valve bag
Packing Size	20kg per pail	28kg per bag

**Typical Properties and Characteristic**
Description	Test Methods	Values
Tensile Strength/MPa	ASTM D412-16 (2021)	> 1.8
Elongation at Break/%	ASTM D412-16 (2021)	> 80
Pull-off Strength (To Concrete) / MPa	ASTM D4541-02	> 1.1
VOC / g/L	ISO 11890-2:2020	0

Application Instructions

Coverage

Approximately 2.0 kg at 1 mm per square meter (This figure is given for guidance only, as actual quantities used will vary depending on the substrate condition and surface profile on site).

Substrate preparation

Concrete, mortar, and masonry surfaces must be clean, free from grease, oil, and loosely adhering particles. Surfaces must be thoroughly saturated with water but have no standing water before the application of YHCoat-1080.

Mixing

YHCoat-1080 is supplied in pre-weighed units. Pour the entire liquid component into a clean mixing container. While mixing at low speed, water can be added, but the quantity should not exceed 15% of the liquid volume. Slowly add the powder component to the liquid and continue mixing for a few minutes until a creamy, lump-free consistency is achieved. The mixture has a pot life of 2 hours.

Detailing

All inside and outside corners should be rounded into circular arcs. Apply an additional coat over pipe ends, cracks, drains, and wall/floor intersections. Install polyester reinforcing fabric and apply YHCoat-1080 in 2-3 coats to ensure the fabric is thoroughly penetrated without folds or edge warping.

Coating Application

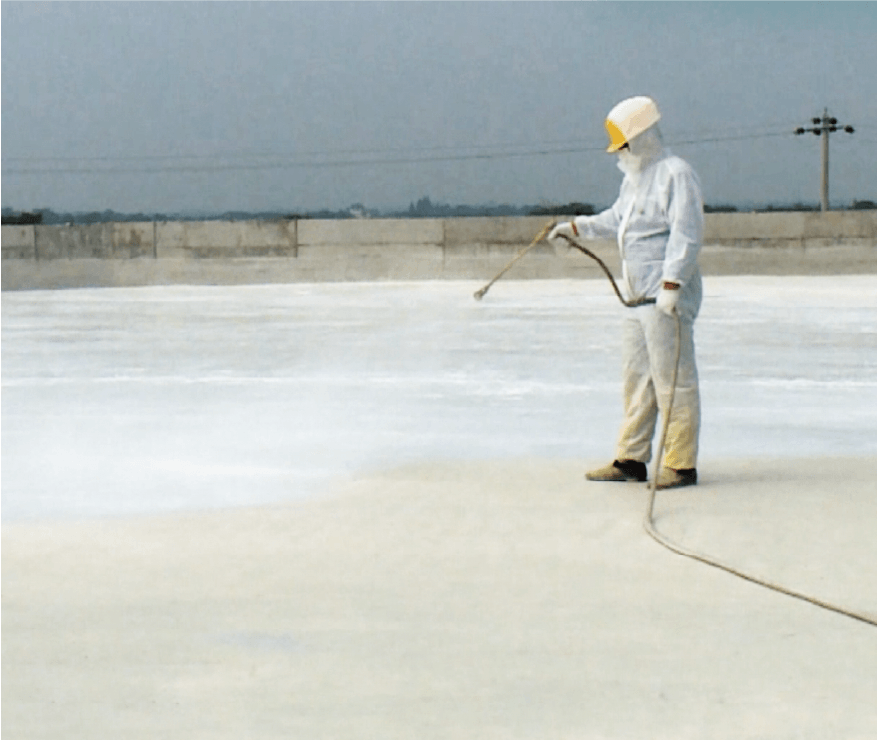

Apply YHCoat-1080 first to vertical surfaces, then to horizontal surfaces. While the substrate is damp but free of standing water, apply the coating using a brush, roller, or squeegee in 2-3 coats. Allow each coat to cure before applying the next, and ensure each coat is applied at a right angle to the previous one. The film thickness must be a minimum of 1.5 mm for horizontal surfaces and 1.2 mm for vertical surfaces. The YHCoat-1080 membrane must cure for 1-2 days, which may be longer in wet condition.

Cleaning

Clean all tools and application equipment with clean water immediately after use. Any hardened or cured material can only be removed mechanically.

Features & Benefits

· Good elasticity with crack bridging capability.

· Can be applied to damp substrates.

· Easy to apply by brush or roller.

· Eco-friendly with low VOC.

Scope of Application

YHCoat-1080 is suitable for balconies, roofs, and wet areas (e.g., kitchens, bathrooms, showers, and laundries), as well as water-retaining structures such as water features, swimming pools, and concrete water tanks. It can also be used as one of the multiple waterproofing layers for non-exposed roofs.

FAQ

Q1: What is the recommended construction temperature for water-based products?

Application temperature +5°C to +35°C
Q2: What is the recommended storage temperature for water-based products?

+5°C to +35°C
Q3: The requirements of water-based products for the base layer？

Ensure that the substrate is firm, clean, dry and free from contaminants such as dirt, oil, grease, old paint and loose materials
Q4: Can the base be damp during the construction of water-based products？

It can be damp but there must be no standing water
Q5: What is the greatest advantage of water-based products？

Safety, health and environmental protection
