One-Component Polyurethane Waterproof Coating

Description Specifications Scope of Application FAQ Download

Description

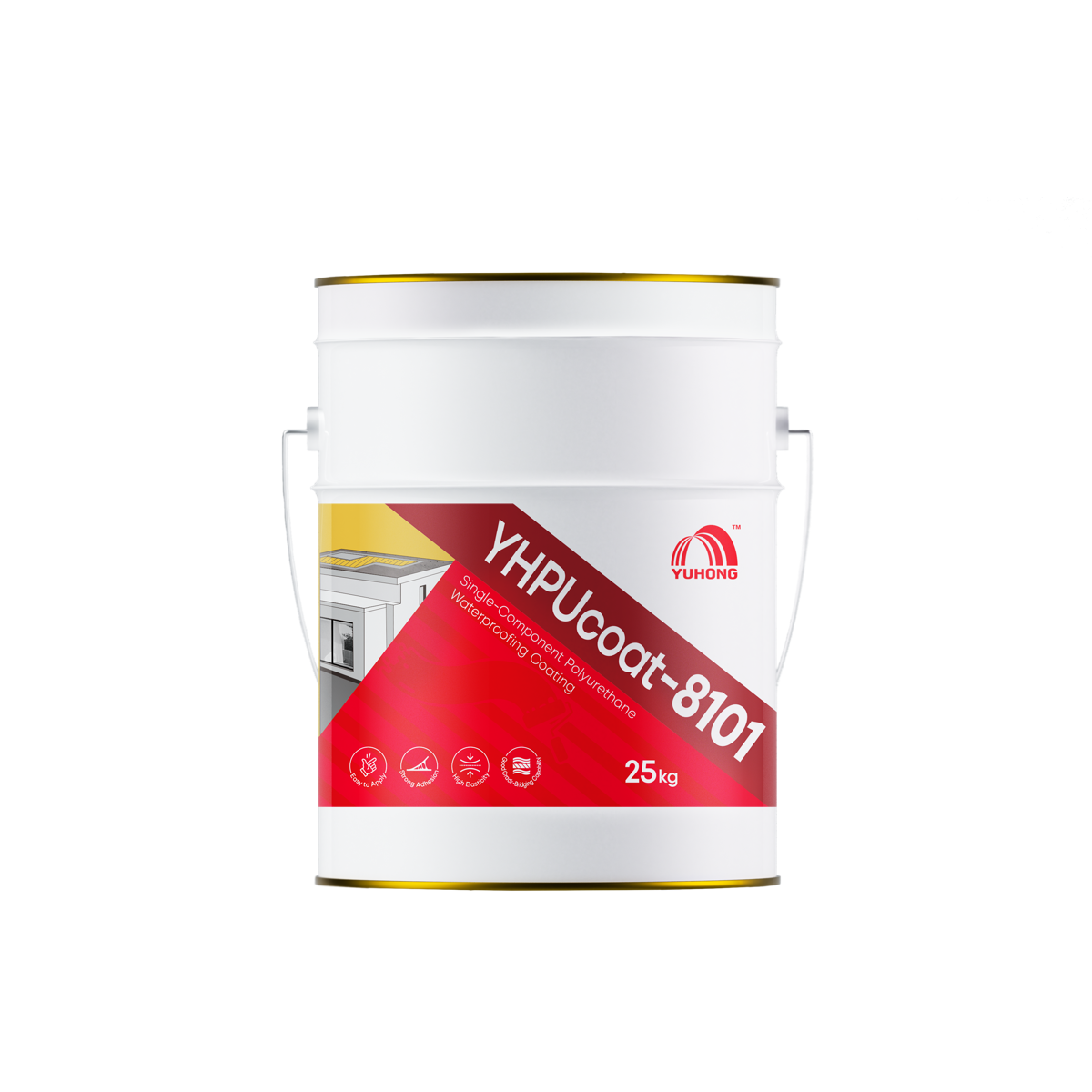

YHPUCoat-8101 is a single-component, cold-applied, moisture-cured aromatic polyurethane waterproofing membrane. It cures to form a seamless, durable waterproofing layer, suitable for use as a base coat beneathaliphatic top coats in exposed roof areas. It is also ideal for applications under tiles, mortar protection layers, orin general non-exposed waterproofing projects such as balconies and terraces.

Specifications

**Packing and Specifications**
Item	Description
Appearance	Viscous Liquid
Viscosity/cp	5000±2000
Color	Black, Grey, White, Green, Red
Density / (kg/L)	1.50-1.60
Solid Content by Weight/%	89-92
Pot life/h	3
Packing Size	25 kg per metal drum

**Typical Properties and Characteristic**
Description	Test Methods	Typical Values
VOC / (g/L)	ASTM D2369	155
Tensile Strength / (MPa)	ASTM D412	2.5±0.3
Cold Bend Performance(°C)	No cracking	--
Elongation at Break / %	ASTM D412	650±150
Tear Strength / (N/mm)	ASTM D624	18±3
Pull-off Adhesion to Concrete / MPa	ASTM D7234	1.8±0.4
Shore A Hardness	ASTM D2240	60-65
Water Penetration Test (5 bar, r, 3 days)	DIN 1048-5	No Penetration
Water Vapor Transmission / ( g/m2·h)	ASTM E96	0.50
Low Temperature Flexibility (-35℃)	ASTM D522	No Cracks
Set-to-Touch Time / h	ASTM D1640	4

Application Information

Materials Consumption

Material consumption depends on the porosity and texture of the substrate. Typically, it is approximately 1.7–1.8kg/m² for a 1 mm dry film thickness.

Application Method

Surface Preparation: The surface should be solid, smooth, free of dust, no loose sand, oil, or visible water. If the surface temperature is too high or the moisture content is too low, it should be wetted with water. The accompanying white liquid is a specialized primer that can be sprayed or rolled on the surface before applying the coating to enhance adhesion.

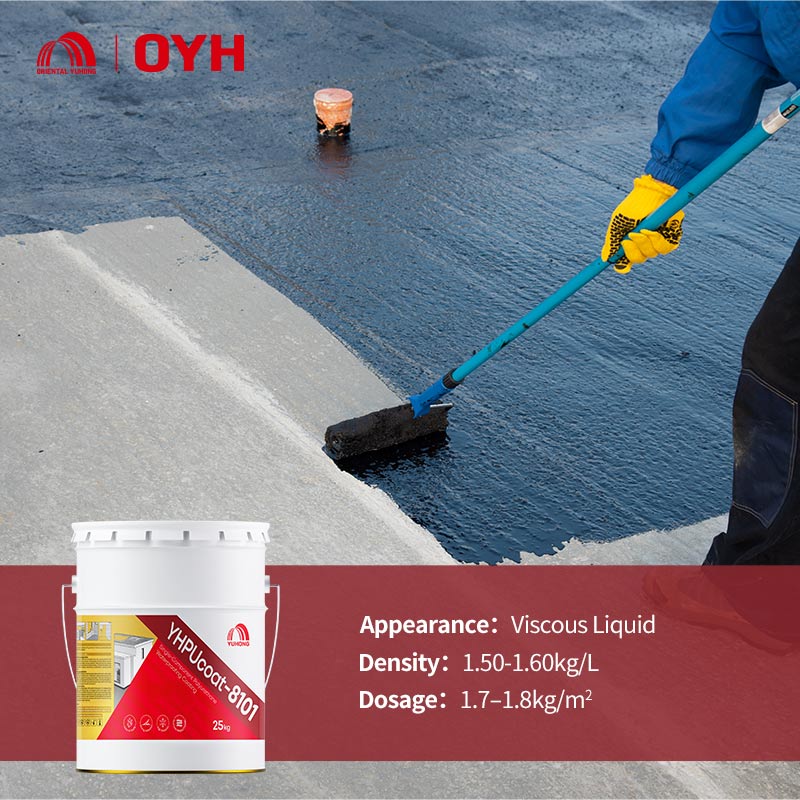

Application: Ready to use directly from the bucket. It can be applied by rolling, spraying, or brushing. Apply 2-4 coats according to the designed thickness, ensuring even coverage with no omissions.

Features & Benefits

· Cold-applied and moisture-cured; no mixing, heating, or flame is required.

· Easy recoating when needed, with no stripping required.

· Maintains elasticity even at low temperatures.

· Provides good adhesion to most substrates.

· Easy application by squeegeeing or spraying.

Scope of Application

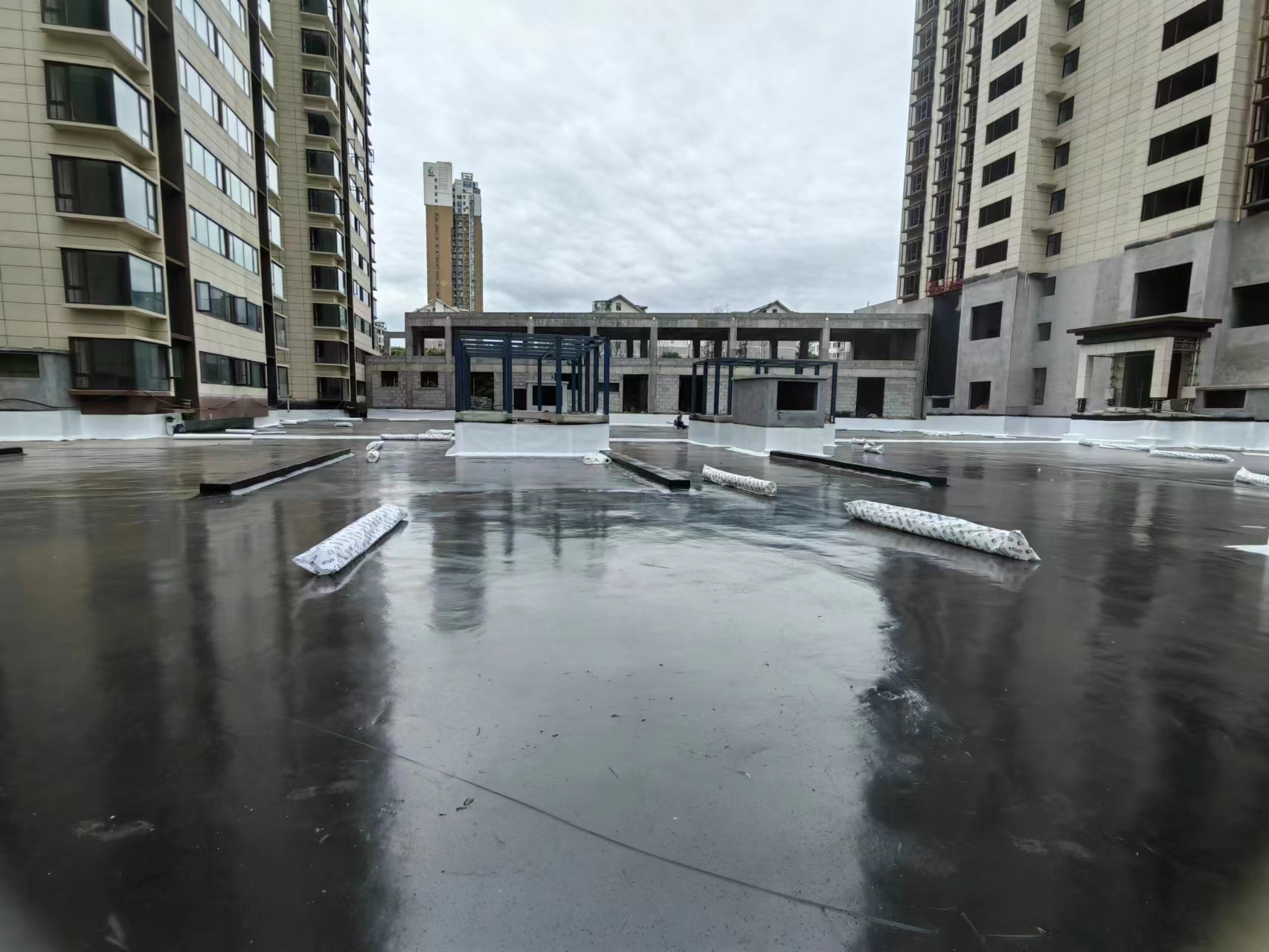

YHPUcoat-8101 is recommended as general non-exposed waterproofing solutions in both new construction and refurbishment projects. It offers cost efficient life cycle extension of failing polyurethane or cementitious waterproofing coatings.

FAQ

Q1: What is the advantage for liquid applied membrane (coating)?

It is suitable for various type of structures and substrates, it can form seamless membrane without joint (seams and joints are the most vulnerable to leakage), and is beneficial for complex structures. The liquid coatings has various functions, sucha as flexible, high strength, excellent abrasion resistance, high load bearing property, and breathable capability, etc.
Q2: What is the difference between one-component polyurethane and two-component polyurethane?

Firstly, the isocyanate group in one - component polyurethane reacts with moisture to form a membrane. Two - component polyurethane has two parts: one part is isocyanate, and the other part is polyol or polyamine, and these two components react with each other to form a membrane. Secondly, due to the difference in the reaction mechanism, the sensitivity to atmospheric conditions is also different. For one - component PU, high moisture and temperature can increase the reaction speed. In contrast, two - component PU has better storage stability, and its reaction speed is hardly affected by moisture.
Q3: Why should the polyurethane coating be used up as soon as possible after opening the container?

Because moisture in the air can enter the container and cure the remaining coating inside.
Q4: What are the differences between sag - resistant PU and levelling PU?

Sag-resistant PU has rheological properties. Rheology is the study of the behavior of materials during "flow" or "deformation" processes. There are several common "rheological behaviors" from the molecular level: 1) Shear thinning,This is the most common type of non - Newtonian behavior. It means that when you apply a shear force to the material (such as stirring, scraping, extruding), the viscosity of the material will decrease. ; 2) Thixotropy: Thixotropy is an "upgraded version" of shear thinning, with an additional dimension: time. Its definition is: During the continuous shearing process, the viscosity of the material will gradually decrease with time; after stopping shearing, it can gradually recover the original viscosity. This ability of "temporarily becoming thin + reversibly recovering" is exactly thixotropy. Materials with good thixotropy can "flow smoothly" during construction, but can quickly recover viscosity to avoid "collapse" and "sagging". For the sag-resistant coating, it is easy to scrape and apply during construction, and does not sag when left standing, ensuring the bonding thickness.
Q5: Can polyurethane coating be used for indoor construction

Yes, the non-solvent polyurethane and water-based polyurethane can be used for indoor waterproofing applications. Non-solvent polyurethane is a high-solids, ultra-low VOC coating, especially suitable for areas with poor ventilation and sensitivity to odors or volatiles.
