High-strength Waterproofing Mortar

Description Specifications Scope of Application FAQ Download

Description

VASA WM200 High-strength Waterproofing Mortar is a two-component product composed of powder and liquid. The powder is made of ordinary silicate cement, refined sand and other additives; the liquid is made of acrylate emulsion and additives. There is no need to add extra water on site, the product is precisely proportioned and can be mechanically sprayed or manually applied. It is characterized by high bond strength, low shrinkage, better seepage resistance, good constructability, non-toxic, harmless, green and so on.

Specifications

PRODUCT INFOMATION

The product complies with the requirements outlined in JC/T 984-2011 "Polymer Cement Waterproofing Mortar." Specific technical indicators are as follows:

ITEM			Data
Setting Time		Initial setting/min, ≥	45
		Final setting/h, ≤	24
Impermeability Pressure/MPa	Coating specimen, ≥	7d	0.5
	Mortar specimen, ≥	7d	1.0
		28d	1.5
Compressive Strength/MPa, ≥			24.0
Flexural Strength/MPa, ≥			8.0
Flexibility (Transverse Deformation Capacity)/mm, ≥			1.0
Bond Strength/MPa, ≥		7d	1.0
		28d	1.2
Alkali Resistance			No cracking, peeling
Heat Resistance			No cracking, peeling
Frost Resistance			No cracking, peeling
Shrinkage Rate/%, ≤			0.15
Water Absorption Rate/%, ≤			4.0

TECHNICAL INFOMATION

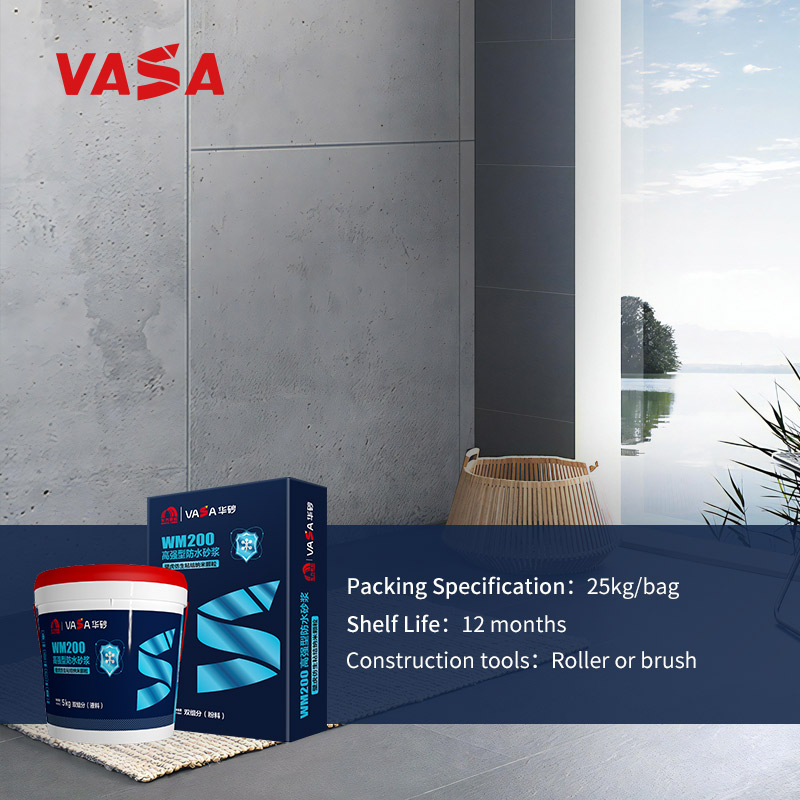

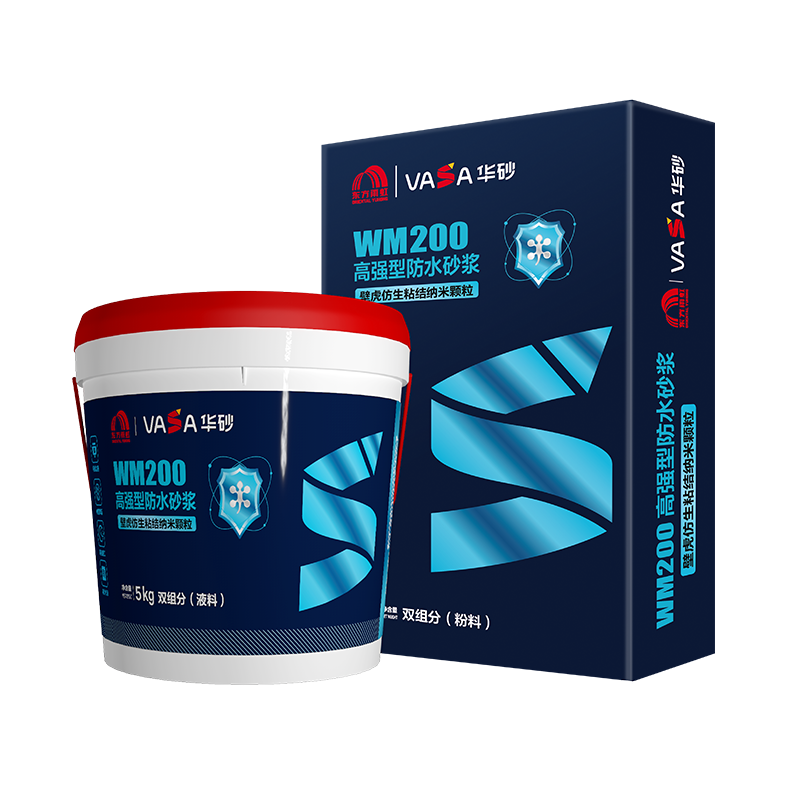

Product Technical Parameters	Packing Specification	5kg/ barrel of liquid material +25kg/ bag of powder material
	Character	Milky liquid material 、 gray powder material
	Executive Standard	JC/T984-2011 "Polymer Cement Waterproof Mortar" Type II
	Shelf Life	12 months when stored unopened in a cool, dry place.
	Mixing Ratio	Liquid: Powder = 1:5 (weight ratio)
Construction Technical Parameters	Operable Time	45min
	Operable Environment	Temperature 5-35°C. Avoid construction in rainy, windy (above grade 5)
	Consumption	2.0kg/m²/mm

APPLICATION PROCEDURE

· Substrate Treatment

Thoroughly clean the substrate to remove dust and oil. Remove protruding and loose parts and repair damaged areas with quick-setting mortar. Wet the substrate thoroughly with clean water, but no standing water should remain.

· Preparation of Mortar

The mixing ratio of the product is liquid: powder = 1:5 (mass ratio). Add the liquid component into the mixing bucket first, then add the powder component, and mix quickly and evenly with a mechanical stirrer. The prepared mortar must be used within 45 minutes, and no additional water should be added during use.

· Application of Mortar

a. Single construction thickness is about 2mm ~ 4mm.

b. The mortar after mixing is evenly divided into batch scraping construction according to the specific construction thickness design requirements, and the second construction is carried out after the first waterproofing mortar is hardened, and so on.

c. After the completion of the last scraping glue, the curing time shall be not less than 7 days after it is hardened.

d. The total thickness of the final mortar layer shall not be less than the design thickness.

FEATURES AND BENEFITS

· Strong bonding with the base and surface materials, no peeling off.

· Machine sprayable, batch able

· Suitable for both waterfront and backwater

· Low shrinkage and better impermeability

Scope of Application

· Waterproofing and seepage-proofing works for external walls of buildings

· waterproofing and moisture-proofing works on the interior walls of buildings, kitchens and restrooms walls

· Underground (such as pile head, garage, tunnel, etc.) waterproofing project

FAQ

Q1: What are the main product series of VASA?

VASA's main product lines include tile and stone pasting series, waterproof mortar series, cement-based grouting material series, wall leveling and skimcoat series, inorganic flooring series, soil solidification products, etc.
Q2: Where is VASA's main production base?

VASA's main production bases are distributed throughout China, and there is also a factory in Johor Bahru, Malaysia.
Q3: What is VASA's production capacity?

The production capacity of VASA dry powder mortar products is approximately 7 million tons.
Q4: The production capacity of VASA dry powder mortar products is approximately 7 million tons.

The reference delivery time for VASA products is seven days within China, sea freight to South East Asia: 7-10 days; Europe/Americas: ~25–35 days; Latin America: ~20-45 days
Q5: Has VASA's product been certified for environmental protection? What are the certifications?

VASA's products have undergone environmental certification, including German GEV-EMICODE certification and French A+ certification.
Q6: What is the main packaging form of VASA products?

VASA's products are mainly packaged in valve pockets and transported on wooden pallets.
Q7: What are the auxiliary installation and construction supports?

We can provide construction videos of our main products to guide their construction.
