Coolroof waterproofing membranes arr_right_inav

Weather-durable Self-adhesive Bituminous Waterproof Membrane

Description Specifications Scope of Application FAQ Download

Description

YHCoolRoof-2008 weather-durable self-adhesive waterproof membrane is a premium membrane designed to deliver excellent UV-resistant performance. It is composed of two waterproofing materials: a specially formulated rubberized asphalt adhesive combined with a high-performance composite film with UV-barrier technology. The rubberized asphalt surface is backed with a release liner. It is a cost-effective solution for exposed cool roof waterproofing application.

Specifications

Characteristics and Packaging

Items	Description
Packaging	Roll
Width (m)	1
Thickness (mm)	1.0
Length ( m)	20
Roll Size (m2/roll)	20
Upper Surface Material	Weather-resistant film
Lower Surface Material	Release film

Properties

Items	Test Methods	Values
Tensile Strength (L/T)[N/50mm]	BS EN 12311-2	≥1000/≥900
Elongation at break (L/T)[ %]	BS EN 12311-2	≥2.5/≥2.5
Puncture Resistance [N]	ASTM E154/E154M-08	≥900
Water Vapour Transmission[g/(m2·hr)]	ASTM E96/ E96M-22	≤0.3
Static Crack Bridging(3.2mm)	ASTM C1305/C1305M-16	No crack
Lap Peel Adhesion[N/mm]	ASTM C1876-02	≥4.5
Resistance to static loading(20kg)	BS EN 12370:2015-Method B	Pass
Tear Strength (L/T) [N/mm]	ASTM D624-00 (2020)	≥9/ ≥10
Resistance to Hydrostatic Head(7 bar)	EN 1928:2000-Method B	No leakage
Peel Adhesion to Concrete[N/m]	ASTM D3767-03 (2020)	≥2000

Application Instructions

· Substrate preparation: The surface should be cleaned, and the surface should be solid, flat, dry, clean, and free of debris. Remove dust, dirt, loose nails, and old roofing materials. Protrusions from the deck area must be removed. Decks shall have no voids, damaged, or unsupported areas. Repair deck areas before installing the membrane.

· Primer application: Before application, substrate should be sprayed or rolled with solvent or water-based primer fully.

· Strengthen layer application: Strengthen layer should be applied at the in-corners and out-corners, post-cast strips, penetrations, deformation joints and other details, and the membranes of pre-cut size and shape should be applied on the substrate.

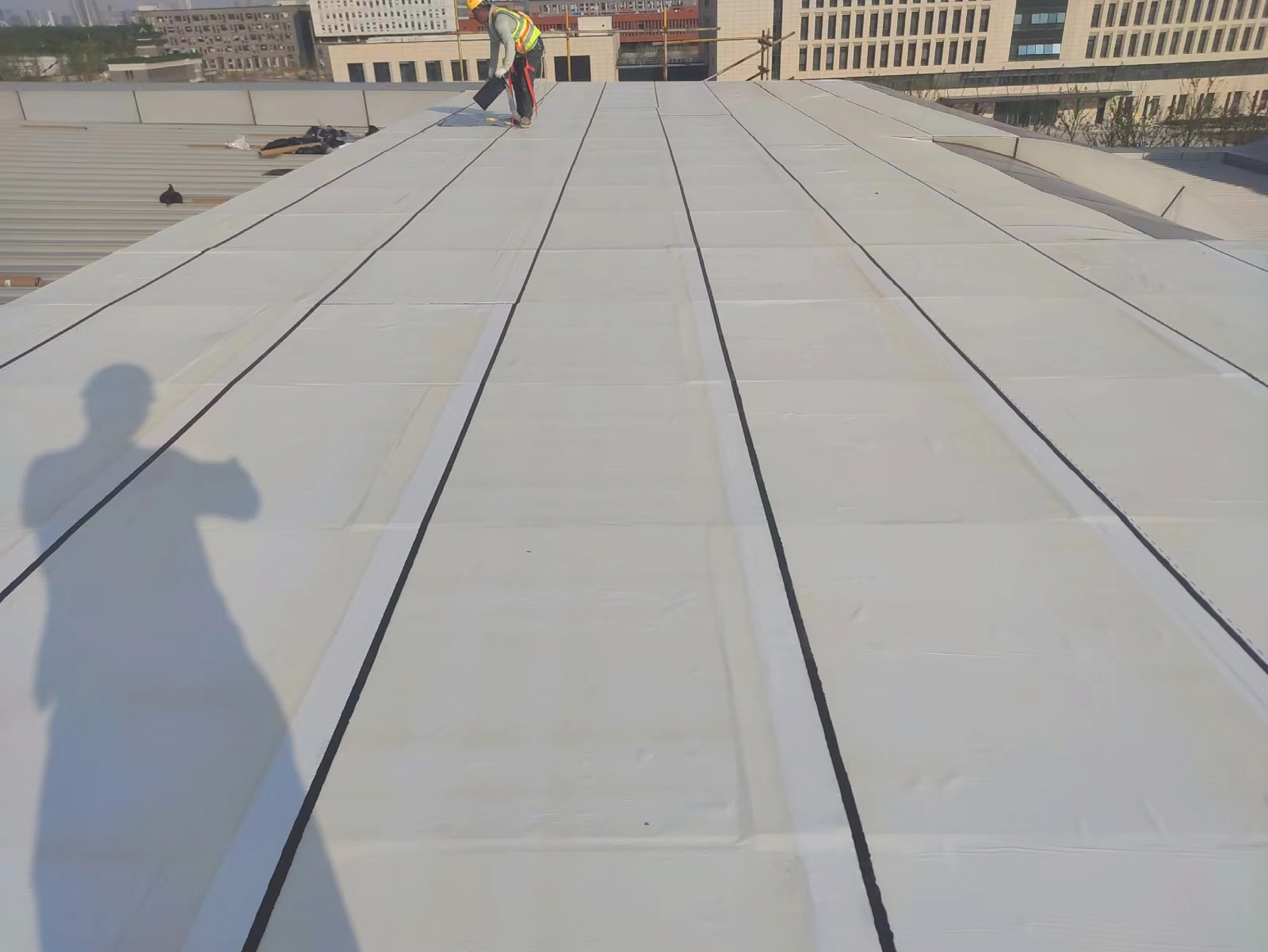

· Membrane application: Remove the release liner and applying the self-adhesive face onto the substrate to ensure a good initial bond. Adjacent rolls are aligned and overlapped a minimum of 80mm at the side and ends with a roller or firm hand pressure to ensure complete adhesion and continuity between the layers. The membrane should be terminated with weather-resistant sealant.

· Lapping joints application: The lateral lap and end lap width should be at least 80mm. It is recommended to cover the overlap with butyl adhesive tape to improve the watertightness. The termination shall be sealed with weather-resistant sealant.

· Repair of damaged membrane: Clean any punctured or damaged areas and patch them using membrane. Ensure a minimum 50mm lap all around the damaged area.

Advantages

· Weather Resistance: With stands 1500h of artificial accelerated aging.

· Energy Efficient: Excellent solar and radiant heat reflection capabilities make roofs more energy-efficient and environmentally friendly.

· High Tear Resistance: Strong resistance to damage, ideal for challenging outdoor environments.

· Easy Application: Self-adhesive material, easy to apply, safe, and environmentally friendly.

Scope of Application

YHCoolRoof-2008 is specifically designed as a durable exposed waterproofing membrane on flat or low-slope roofs with minimal pedestrian traffic. It is ideally suited for the refurbishment of concrete roofs, metal roofs, bitumen membrane roofs, and other roof waterproofing applications.

Download

YHCoolRoof-2008
