Description

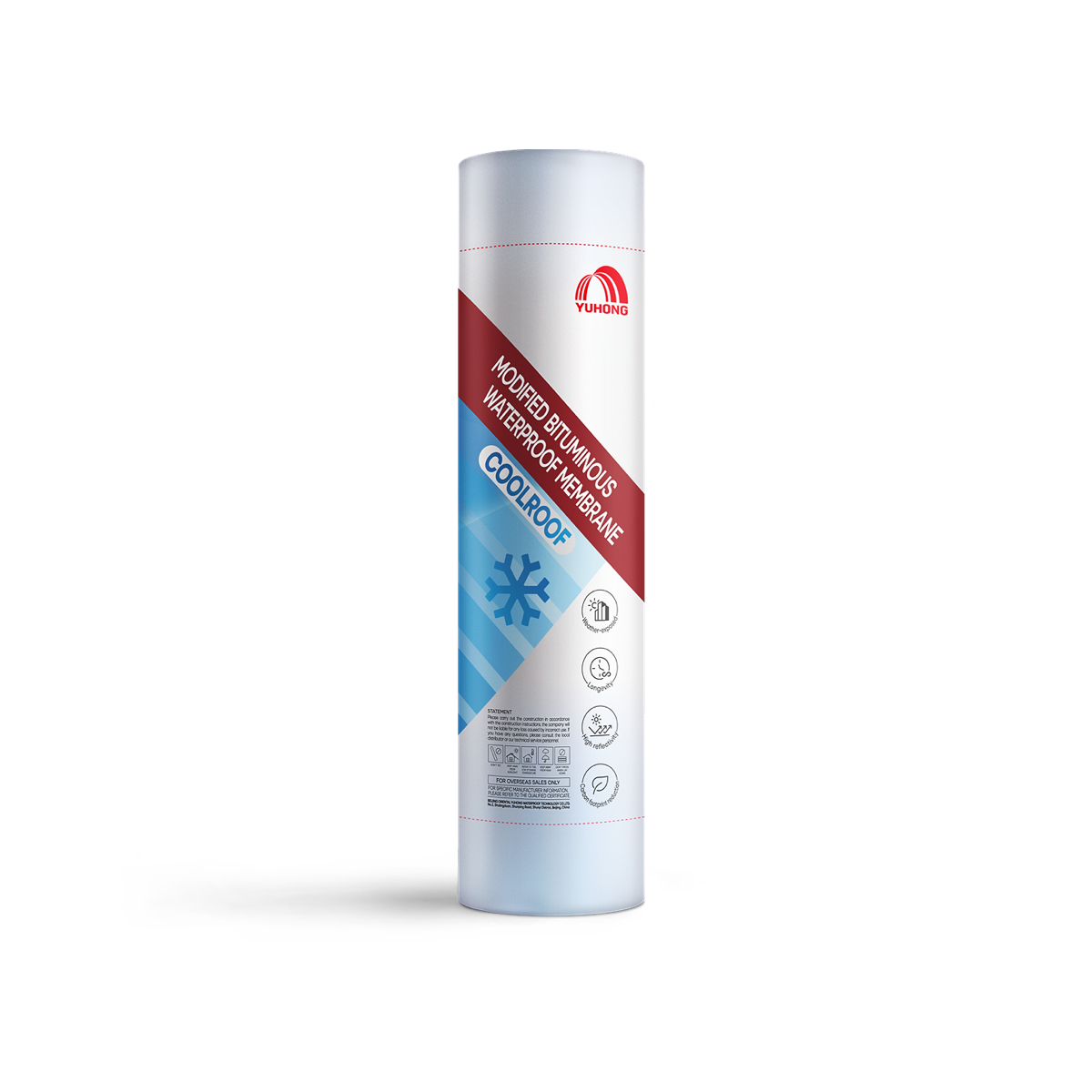

YHCoolRoof-2020BR waterproofing membrane is composed of two waterproofing materials—an aggressive butyl-based adhesive backed by a layer of high quality of fluorocarbon laminated film. The unique advanced adhesive formulation offers premium adhesion to the roof deck, high quality laps, superior seal around roofing fasteners, and outstanding high temperature stability. The adhesive is backed by a protective plastic release liner that protects its adhesive quality. The release liner is easily removed allowing the adhesive to be bonded tightly to the roof deck.

Specifications

Characteristics and Packaging


Item	Data
Appearance	UV-resistant film-surfaced
Width (m)	1.0
Thickness / mm	0.6;1.0
Length (m)	20
Roll Size (m2/roll)	20

Properties

Items	Test Methods	Values
Tensile force / (N/mm)	ASTM D412	≥6
TDS）Elongation at break / %	ASTM D412	≥50
Adhesion to plywood at 23℃/ (N/mm)	ASTM D903	≥1
Adhesion to steel at 23℃/ (N/mm)	ASTM D903	≥1
Low temperature flexibility (-40℃)	ASTM D1970	No crack
Thermal stability / (100℃)	ASTM D1970	Pass
Peel strength of lap/ (N/mm)	ASTM D1876	≥1
Resistant to artificial weather aging (Xenon Arc Lamps, for 2745h)	BS EN ISO 16474-2	No visual damage

Application Instructions

· Substrate preparation：The surface must be cleaned and should be solid, flat, dry, and free of debris, dust, dirt, loose nails, or old roofing materials. Protrusions on the deck must be removed. Ensure the deck has no voids, damaged areas, or unsupported sections. Repair any such areas before installing the membrane.

· Detailing：Additional layers should be applied to treat inside and outside corners, pipe penetrations, gutters, deformation joints, and other critical areas. Use pre-cut membranes of suitable size and shape to ensure proper coverage and adhesion on these surfaces.

· Membrane installation: Peel back the release liner, align the membrane, and continue to remove the release liner as you progress. Press the membrane firmly into place using heavy hand pressure to ensure proper adhesion. Ensure side laps and end laps are a minimum of 80 mm. Always work from the low point to the high point of the roof during installation. roof.

Advantages

· Fluorocarbon weathering film has excellent weather resistance and can be used for exposed areas for more than 20 years. And the white fluorocarbon film can significantly reflect solar radiation energy, which can significantly reduce the roof temperature by about 10°C ~ 35°C in hot climates.

· Superior adhesion—The membrane bonds firmly to the substrate and forms high quality laps.

· Dual barrier protection—Butyl rubber and fluorocarbon laminated film are combined to form a continuous water, air and vapor barrier providing maximum protection.

· Heat Resistance— The membrane is specially formulated and will resist temperatures up to 100℃ for extended periods of time without degradation of the butyl adhesive.

· Watertightness around nail shank—The unique butyl rubber based adhesive as the base material has excellent sealing properties and can heal nail shank damage with a diameter of less than 2mm.

Scope of Application

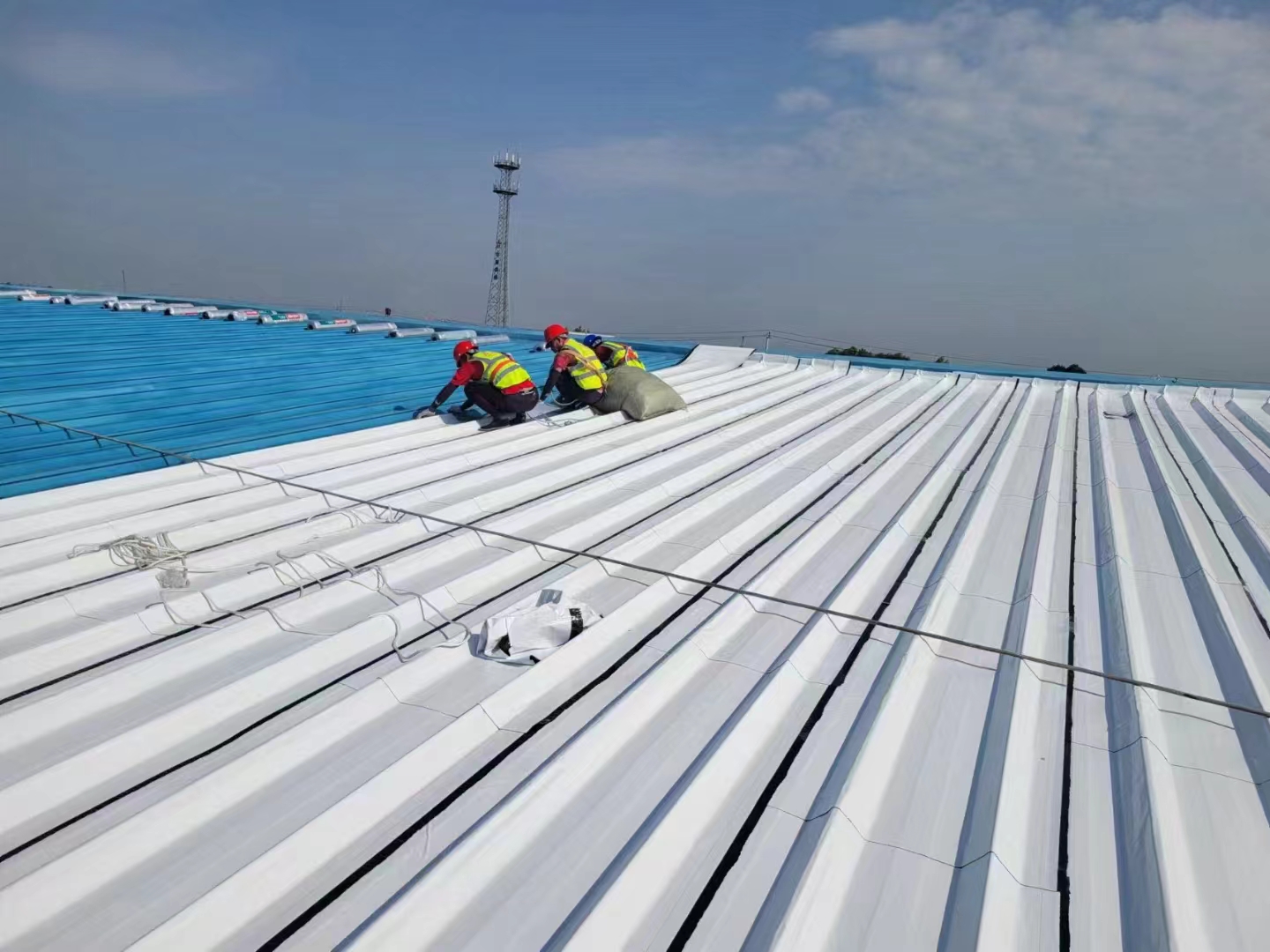

YHCoolRoof-2020BR is especially designed as a durable exposed waterproofing membrane on flat or pitched roofs with rare pedestrian traffic. Especially suitable for refurbishment of metal roofing, photovoltaic roofing, single-layer membrane roofing and other roof waterproofing.
