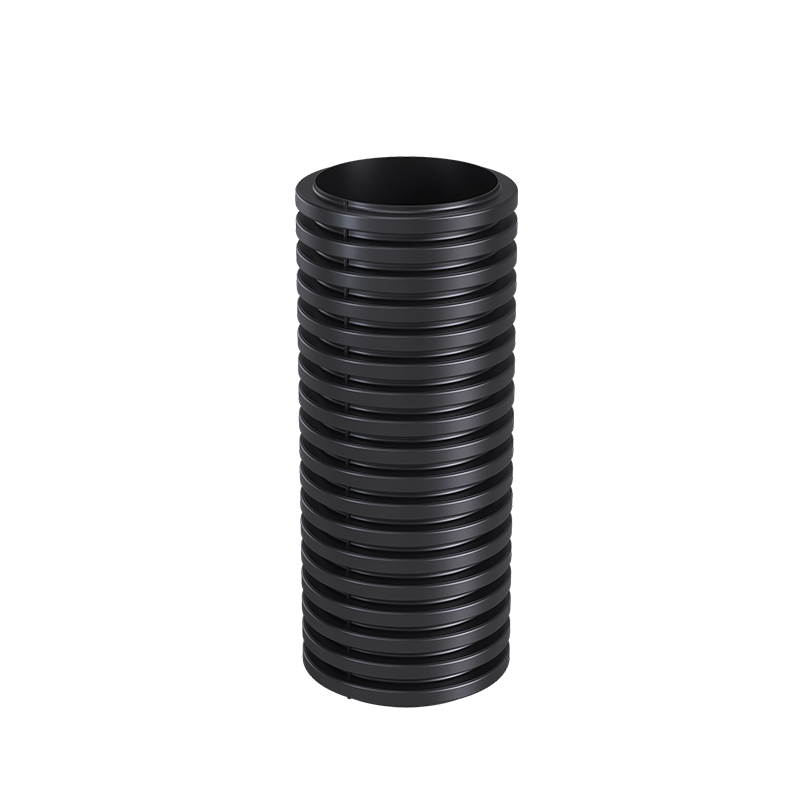

YuGuard HDPE Double-Wall Corrugated Pipe

Description Specifications Scope of Application FAQ Download

Description

1. Lightweight Yet High Strength Weighing only one-tenth of concrete pipes, it can be manually transported without mechanical lifting costs. Its circular corrugated structure ensures a compressive strength of SN8 rating, maintaining integrity even when buried at depths of up to 4 meters. 2. Easy Installation & All-Weather Construction Featuring plug-and-socket connections that require no curing, each joint can be completed in just 3 minutes—compared to the 24-hour solidification time of cement pipes. Construction remains efficient and minimally impacted by weather conditions. 3. Exceptional Cost-Effectiveness With low procurement costs and zero anti-corrosion maintenance expenses, it offers a service life of 50 years. The total lifecycle cost is merely one-third of that of traditional piping materials.

Specifications

Size: DN200-DN800

Scope of Application

1. Municipal drainage: Rainwater and sewage pipe network, anti-settlement and non-leakage.

2. Industrial pollution discharge: Resistant to chemical corrosion, safe and reliable.

3. Sponge City: Permeable drainage helps with rainwater recycling.

FAQ

Q1: What are the recommended fusion welding temperatures for PE and PP-R pipes?

What are the recommended fusion welding temperatures for PE and PP-R pipes?
Q2: What are the maximum service temperatures and pressures for PE and PP-R pipes in water supply systems?

"PE pipes have a maximum service temperature of 40°C and a pressure rating of 1.6 MPa. PP-R pipes have a maximum service temperature of 70°C and a pressure rating of 1.0 MPa"
Q3: What are the available pressure ratings for PE pipes, and which are the most commonly used?

"PE pipes are available in eight pressure ratings, ranging from PN0.4 to PN2.0. The most commonly used ratings are: PN0.6, PN0.8, PN1.0, PN1.25, and PN1.6."
Q4: What are the standard pipe lengths for PE pipes, and how can the length be customized?

"PE pipes are supplied in both coils and straight lengths. Coiled pipes are typically supplied in 100-meter rolls. Straight pipes are generally 6 meters per length. Customized lengths are also available upon request, such as 9 meters or 12 meters per coil, depending on customer requirements."
Q5: What types of PE fittings are available, and how should they be selected?

"There are three main types of PE fittings: Socket fusion fittings (recommended for sizes DN20 to DN110) Butt fusion fittings (commonly used for sizes above DN110) Electrofusion fittings, which are commonly used in standard water supply systems and are typically applied in maintenance and repair scenarios."
