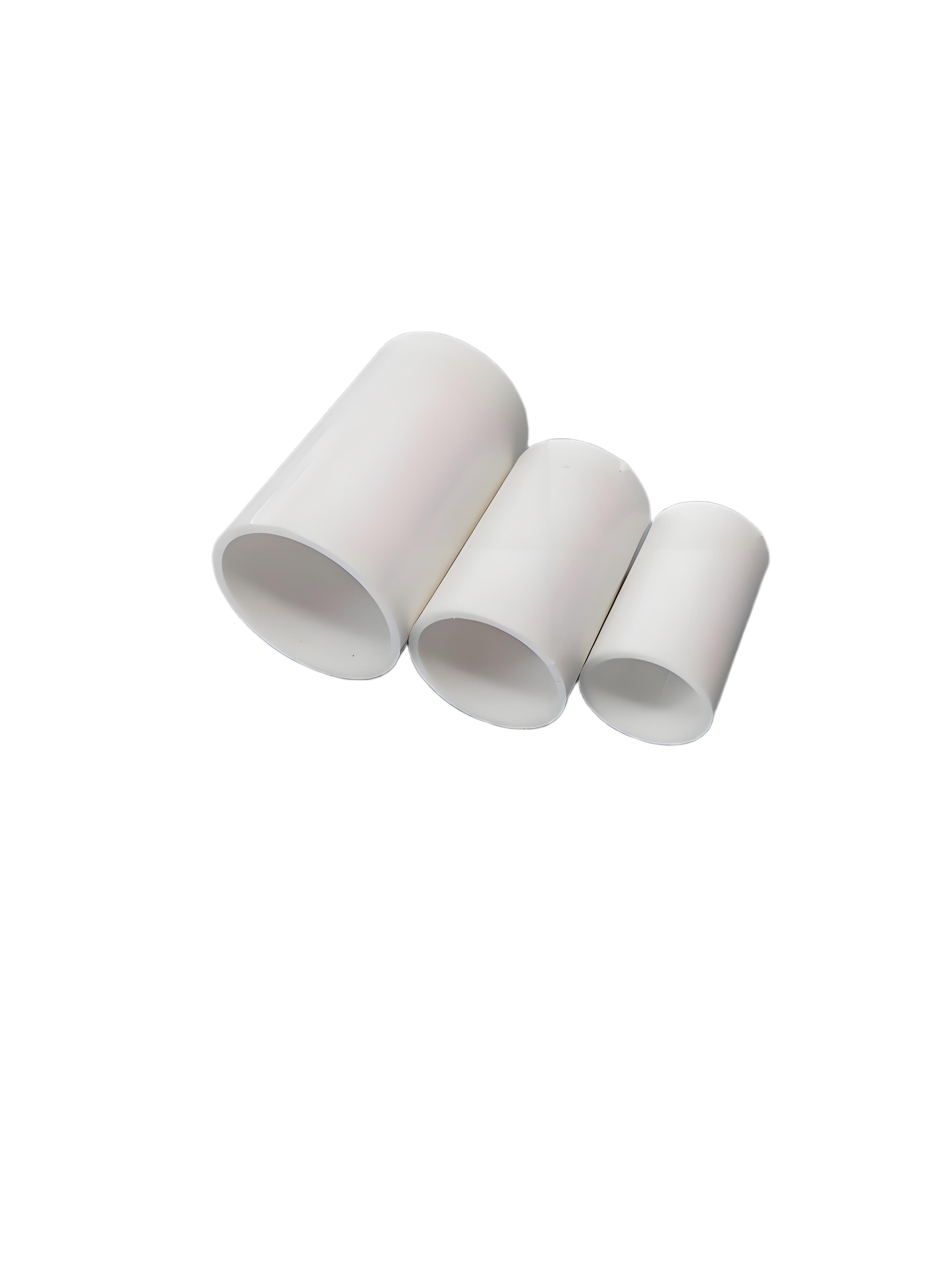

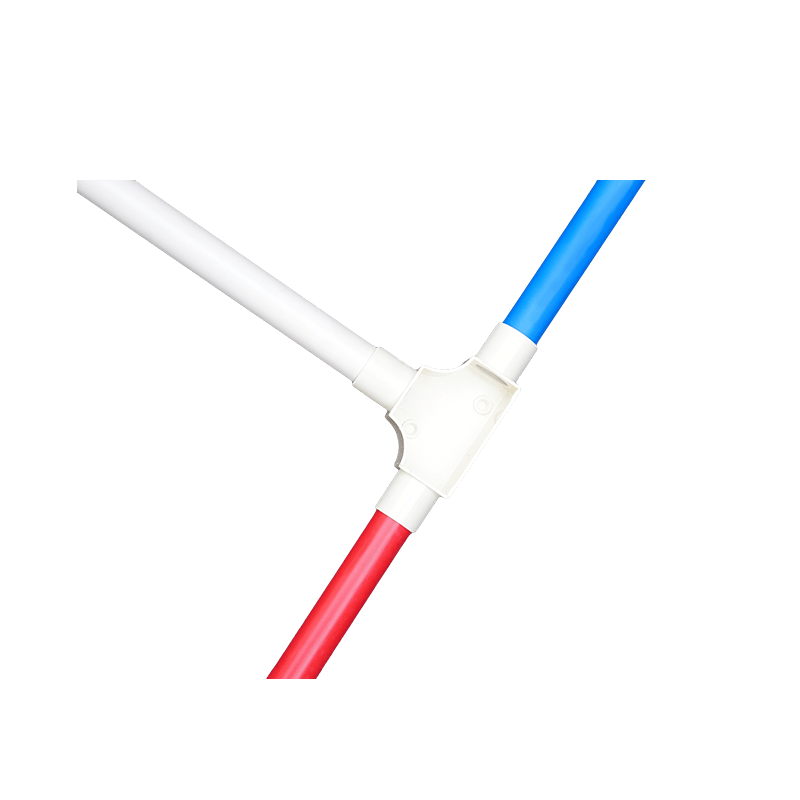

YuGuard PVC Rigid Conduit

Description Specifications Scope of Application FAQ Download

Description

The YuGuard PVC Rigid Conduit is a high-performance solution designed to protect and route electrical wiring in residential, commercial, and industrial installations. Manufactured from premium-grade PVC, it offers excellent mechanical strength, impact resistance, and insulation properties, ensuring safety and longevity in various environments. Its precise dimensions and smooth internal surface facilitate easy cable pulling while minimizing the risk of damage to wires.

Specifications

16-40mm

Features & Benefits

Durability: Resistant to corrosion, chemicals, and environmental factors, providing reliable protection over decades.

Safety: Excellent electrical insulation reduces the risk of short circuits and enhances fire safety.

Ease of Installation: Lightweight construction, standardized fittings, and smooth interior allow quick and efficient installation.

Versatility: Suitable for indoor and outdoor applications, in walls, ceilings, or underground installations.

Cost-Effective: Low maintenance, long service life, and minimal replacement requirements reduce overall lifecycle costs.

Scope of Application

YuGuard PVC Rigid Conduit is ideal for electrical wiring protection in residential buildings, commercial complexes, industrial facilities, and infrastructure projects. It is suitable for concealed wiring, exposed installations, and underground electrical networks. Its robust and adaptable design ensures safe, organized, and efficient cable management, making it a trusted choice for modern construction and electrical projects.

FAQ

Q1: What are the recommended fusion welding temperatures for PE and PP-R pipes?

The fusion welding temperatures vary depending on the material and are also affected by ambient temperature. For PE pipes, the recommended welding temperature is 210 ± 10°C, while for PP-R pipes it is 260 ± 10°C.
Q2: What are the maximum service temperatures and pressures for PE and PP-R pipes in water supply systems?

"PE pipes have a maximum service temperature of 40°C and a pressure rating of 1.6 MPa. PP-R pipes have a maximum service temperature of 70°C and a pressure rating of 1.0 MPa"
Q3: What are the available pressure ratings for PE pipes, and which are the most commonly used?

"PE pipes are available in eight pressure ratings, ranging from PN0.4 to PN2.0. The most commonly used ratings are: PN0.6, PN0.8, PN1.0, PN1.25, and PN1.6."
Q4: What are the standard pipe lengths for PE pipes, and how can the length be customized?

"PE pipes are supplied in both coils and straight lengths. Coiled pipes are typically supplied in 100-meter rolls. Straight pipes are generally 6 meters per length. Customized lengths are also available upon request, such as 9 meters or 12 meters per coil, depending on customer requirements."
Q5: What types of PE fittings are available, and how should they be selected?

"There are three main types of PE fittings: Socket fusion fittings (recommended for sizes DN20 to DN110) Butt fusion fittings (commonly used for sizes above DN110) Electrofusion fittings, which are commonly used in standard water supply systems and are typically applied in maintenance and repair scenarios."
