Thermoplastic Polyolefin (TPO) Waterproofing Membrane

Description Specifications Scope of Application FAQ Download

Description

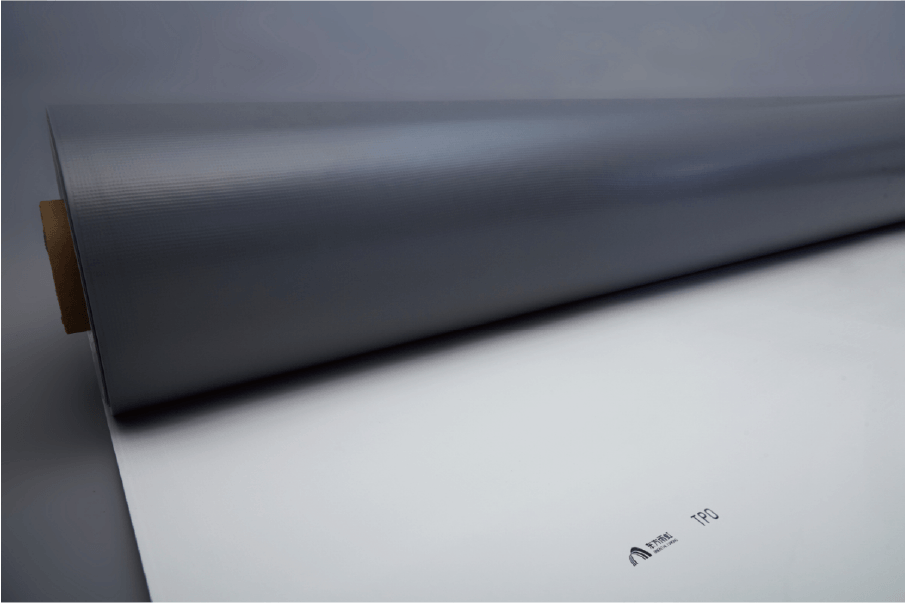

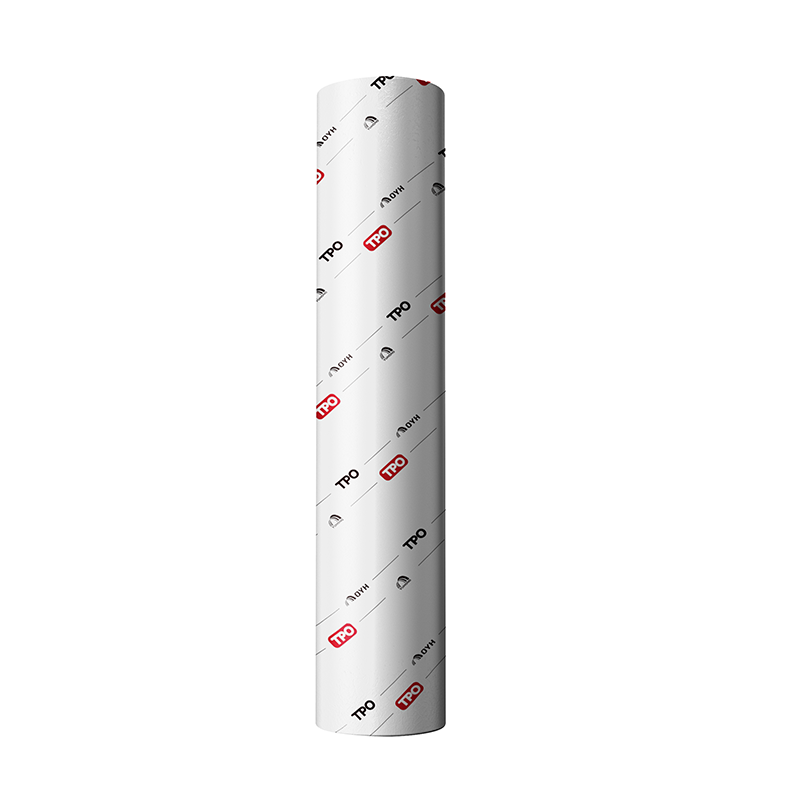

PMT-3030P is a thermoplastic polyolefin waterproofing membrane that is made with Lyondell Basell Hifax Series TPO special high-quality resin and a polyester mesh reinforced fabric as the base layer. It is backed with special characteristics such as flame retardant, light shielding & light stabilizer and antioxidant. It has excellent weathering properties, which allows it to be used either as a concealed or exposed system.

Specifications

**Packaging and Specifications**
Item	Description
Packaging	Roll
Product Type	Reinforced Polyolefin
Width (m)	2.0
Thickness (mm)	1.2 or 1.5 / 1.8 or 2.0
Length (m)	25 / 30
Coverage (m2/roll)	50 / 50

Typical Properties

Description	Test Methods	Values
Thickness, mm	ASTM-D6878 & D751-19	≥ 1.5m
Water Absorption	ASTM D6878 & D471-16A	0.1% (Passed)
Ozone Resistance	ASTM D6878 & D11491-18	No Cracks (Passed)
Factory seam Strength	ASTM D6878 & D751-19	869N (Passed)
Tensile Test	ASTM D6878 & D751-19	(X) 2120N(Passed)(Y) 1990N(Passed)
Elongation	ASTM D751	(X) 26%Passed) (Y) 25%(Passed)
Tear Strength	ASTM D6878 & D751-19	(X) 278N(Passed) (Y) 379.8N(Passed)
Thickness of coating over fabric or Scrim	ASTM D6878 & D7635	0.68mm (Passed)
Linear Dimensional Change	ASTM D6878 & D1204-14	Within +1% (Passed)
Heat Ageing	ASTM D6878 135℃ & 1344hs	No Cracks (Passed)

Remark:
The technical indicators and typical values of 1.5mm products are shown in the table. The above membrane testing results can be provided. For other product performance specifications, please refer to the corresponding product test report.

Application Method

· Substrate preparation: Substrates must be clean, dry, smooth, and free of sharp edges, fins, loose or foreign materials, oil, grease, and other.

· All roughened surfaces that can damage

the membrane shall be repaired as specified to offer a smooth substrate.

· All surface voids greater than 6.3 mm wide shall be properly filled with an acceptable fill material.

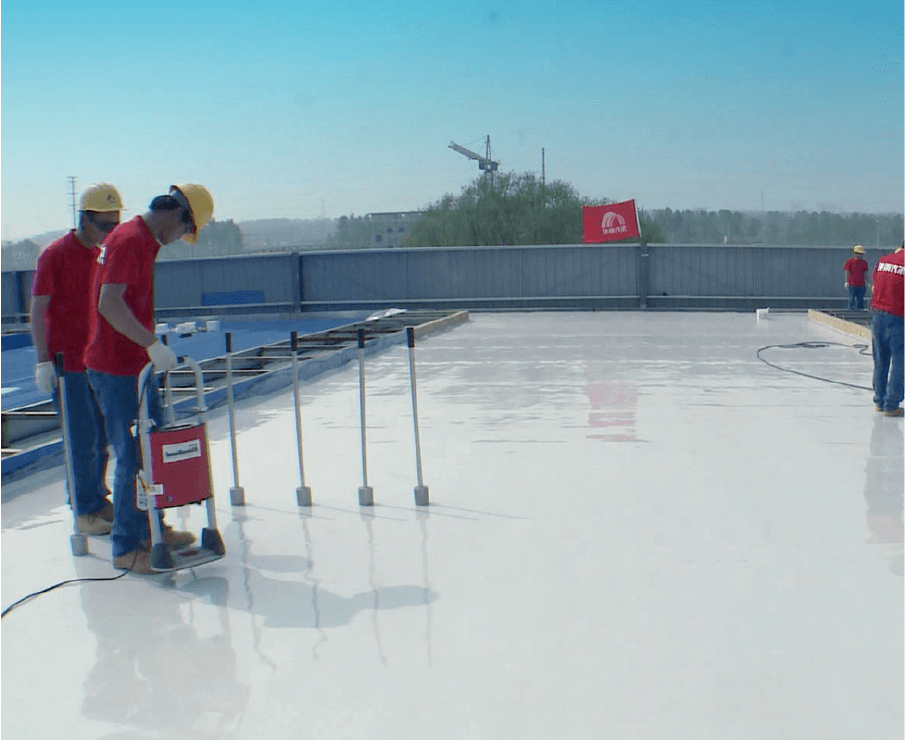

· All laps & joints shall be heat welded with a proper hot air hand gun under roller pressure.

· The membrane shall be laid in a predetermined position. It shall be smooth and straight without twisting and crossing.

· The membranes are mechanically attached to the substrate with approved plates and fasteners.

Detail treatments.

· Termination of membrane can be done by special flashings or as advised by the manufacturer.

· For more information, kindly refer to MSDS submitted by waterproofing applicator.

Features & Benefits

· Hot air welding-Homogenous Joints.

· Excellent Weather Resistance and Durability (No plastizer in TPO that affects

service life).

Excellent Low Temperature Resistance (Membrane flexibility maintained even at -40℃ .

· Chemical and Corrosion Resistance.

· Root Resistance (for green roofing and trees).

· Energy saving, Environment Friendly

· Excellent reflectivity that can reflect most of the sunlight radiation thus reducing energy consumption.

· Variety of colors are available.

· Patented function layer on the surface is not easy to adsorb dust, which is beneficial for maintaining a higher solar reflectivity coefficient.

Scope of Application

Suitable for mechanically fixed roof and ballasted roof.

FAQ

Q1: What are the common types of TPO membranes？

A1: Currently, we offer reinforced, fleece-backed, homogeneous, self-adhesive, and pre-applied TPO waterproofing membranes.
Q2: What are the typical application scenarios for different types of TPO membranes?

A2: Reinforced TPO membranes are commonly used in single-ply roofing systems and are typically installed using mechanical fastening methods. · Fleece-backed TPO membranes are usually bonded to the roofing substrate using adhesives in a fully adhered system. · Homogeneous TPO membranes are typically used for detailing and treating intricate areas. · Pre-applied TPO membranes are commonly used for basement slabs. The adhesive side of the membrane faces upward and is loosely laid over the concrete blinding layer. Reinforcement is then tied directly on top, followed by the casting of the slab concrete. · Self-adhesive TPO membranes are often used in combination with waterproof coatings on basement walls and roof slabs.
Q3: What are the features of our TPO single-ply roofing system?

A3: The TPO single-ply roofing system offers excellent waterproofing performance. The membrane overlaps are joined using hot-air welding, ensuring a reliable and secure seal. In addition, using white TPO membranes helps reflect most of the solar radiation, which reduces indoor temperatures in summer and lowers the energy consumption of cooling systems.
Q4: What types of buildings are suitable for TPO single-ply roofing systems?

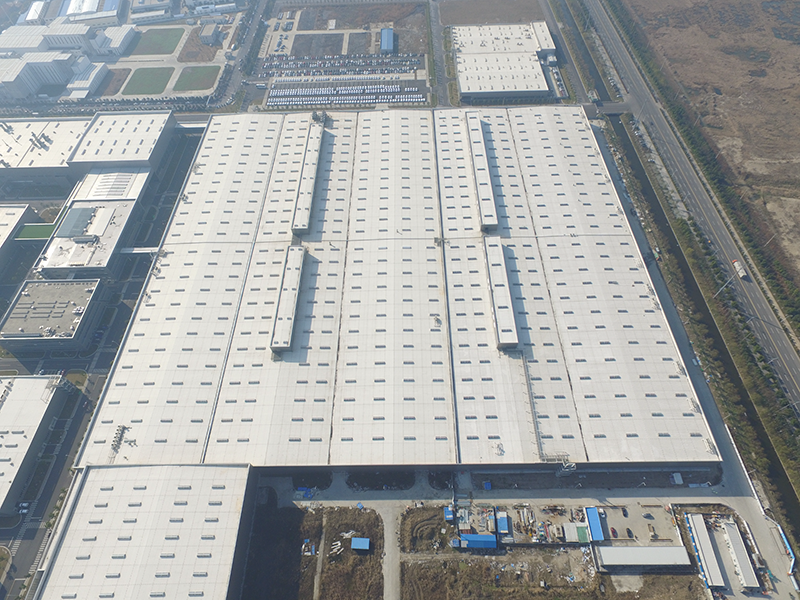

A4: TPO single-ply roofing systems are commonly used on large-span steel structure roofs, such as those of industrial plants, commercial buildings (e.g., IKEA, Costco), as well as airport terminals and sports venues.
Q5: What is the seam treatment method for TPO waterproofing membranes?

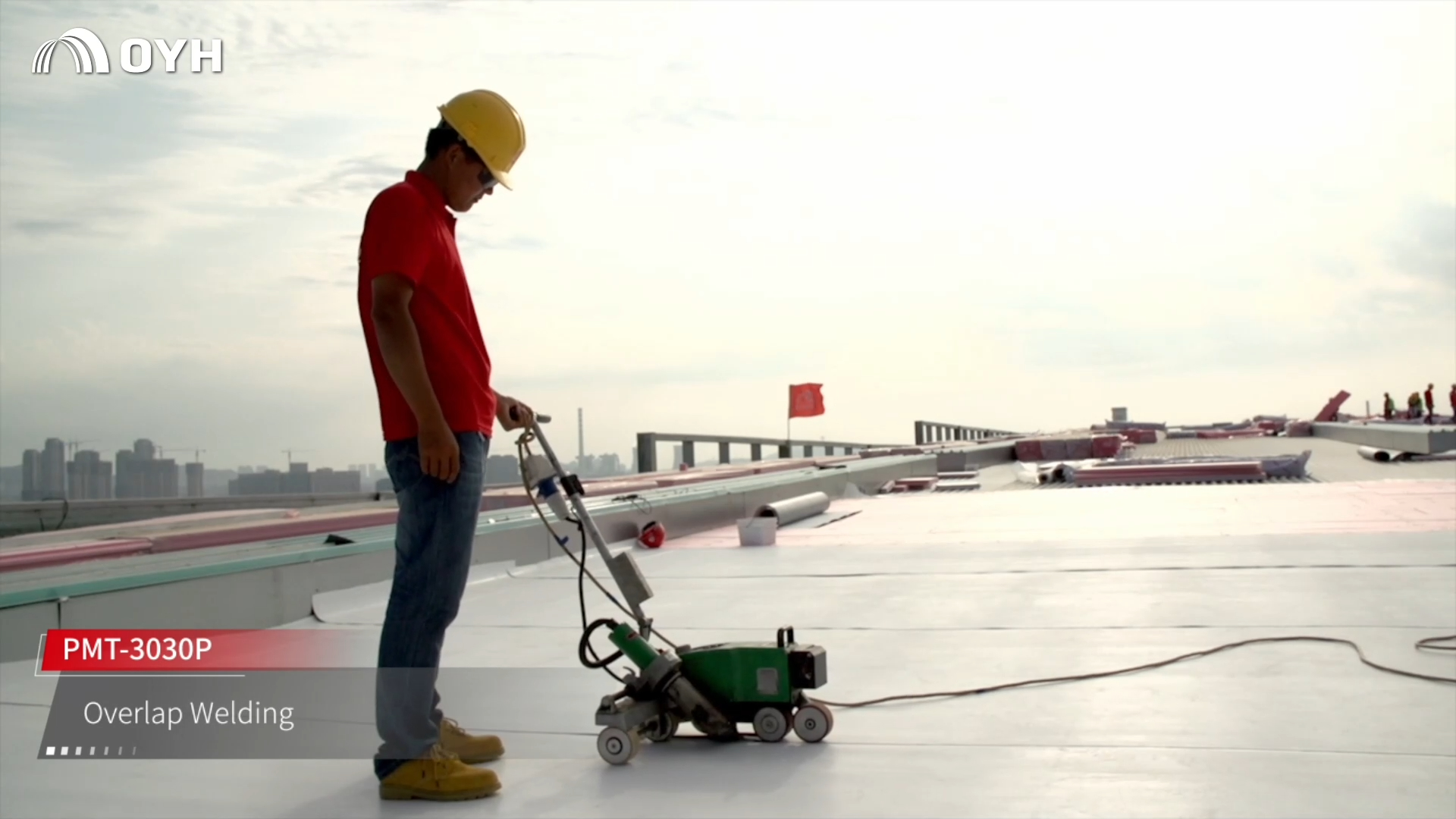

A5: The seams of TPO waterproofing membranes are joined using hot-air welding. Specialized welding equipment blows hot air to melt the upper and lower surfaces of the overlapping membranes, allowing them to fuse together into a single, continuous layer.
Q6: Can TPO membranes be used as root-resistant waterproofing membranes?

A6: Yes, TPO waterproofing membranes have root-resistant properties. The membrane itself is dense, and the overlaps are hot-air welded, creating a continuous barrier. This physical structure provides effective resistance against root penetration, making TPO suitable for use in green roof systems.
