High Density Polyethylene (HDPE) Pre-applied Waterproofing Membrane

Description Specifications Scope of Application FAQ Download

Description

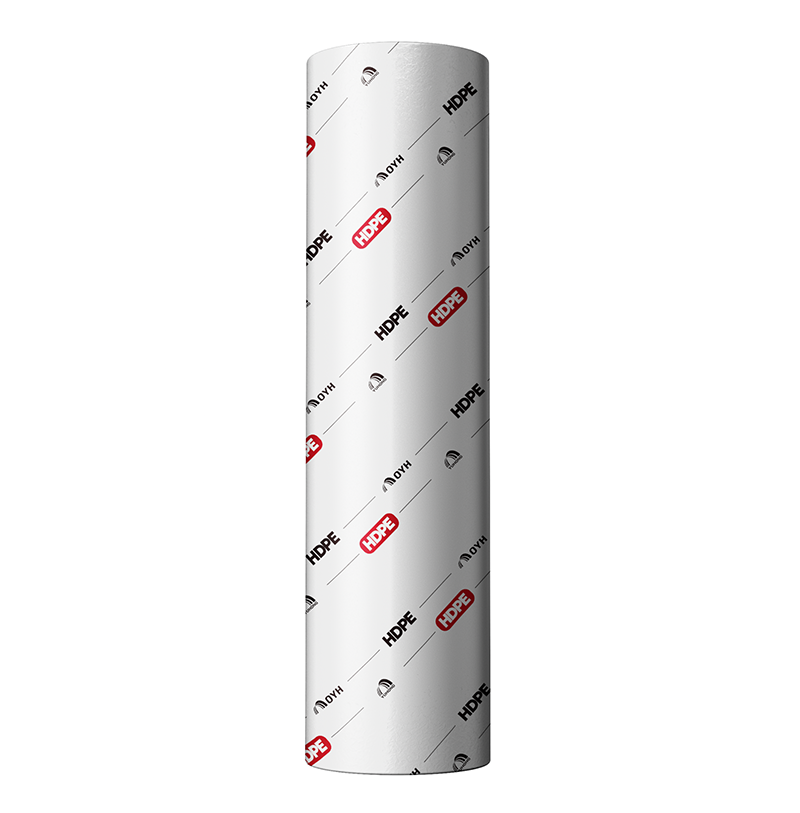

PMH-3080 is a pre-applied high density polyethylene (HDPE) waterproofing membrane. It consists of a thick HDPE film, pressure sensitive adhesive and weather resistance granular layer. One long edge of the membrane has a reserved 80mm wide self-adhesive overlap or a 100mm wide welding strip, used for water tight lap joint construction.

Specifications

Characteristics and Packaging

Item	Data

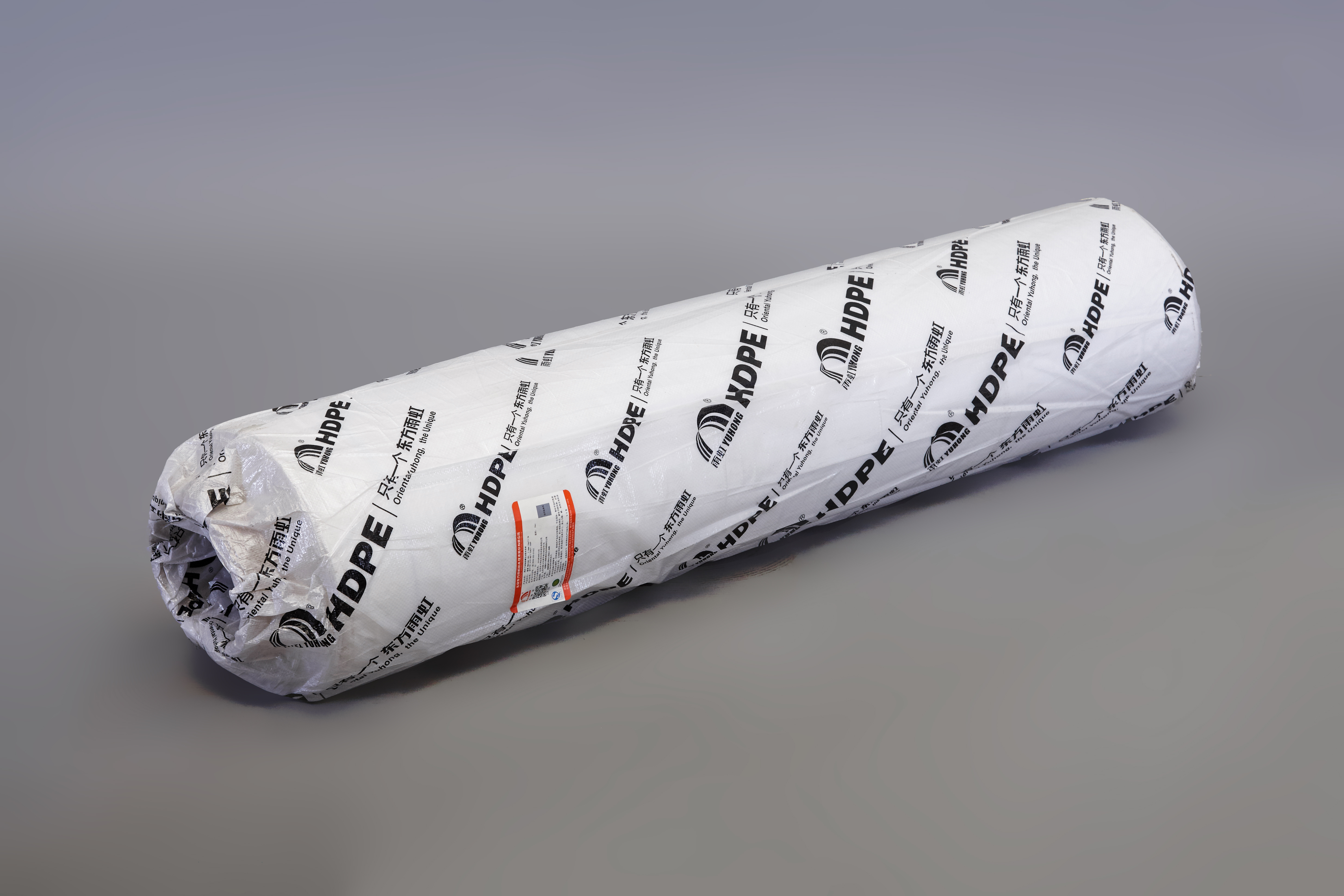

Package	Curled into a cylindrical, using suitable packaging material.
Width (m)	1.2, 2.4
Thickness (mm)	1.2, 1.5, 1.7
Length （m）	20 or Customized
Area (m2/roll)	24, 48 or Customized

Properties

Description	Test Methods	Typical Values
Tensile Strength	ASTM D412	21 MPa
Elongation at Break	ASTM D412	500%
Puncture resistance	ASTM E154	1000 N
Peel adhesion to Concrete	ASTM D903	1800N/m
Resistance to hydrostatic head	ASTM D5385	71m
Peel strength in lap	ASTM D1876	1000N/m
Crack cycling	ASTM C1305	-23℃, 100 cycles no crack
Water vapour transmission	ASTM E96 B	0.0043g/(m2 .h）
Flexibility at low temperature	ASTM D1970	-29℃

Note: The above data were tested under standard conditions (temperature 23 ℃ ± 2 ℃, relative humidity 50% ± 10%).

Application Instructions

Accessories: PMH-T-160 Butt Joint tape, PMH-T-S80 Particle Cover Tape, PMH-S-600 Sealant, PMH-T-B250D Double-sided Butyl Tape, etc.

Construction Tools: Pressing plates, Rollers, Hot Welding Gun, etc.

Application Instructions

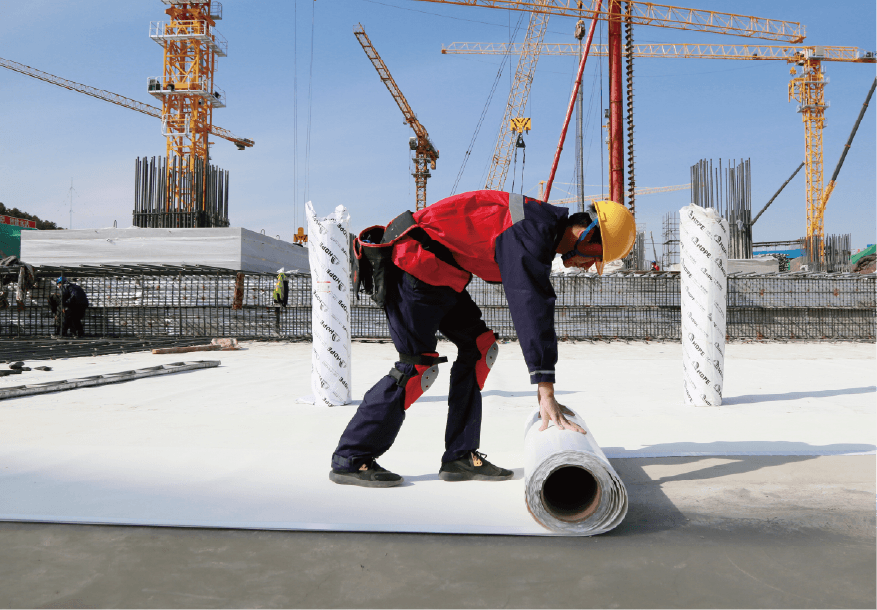

Horizontal Installation:

Substrate Preparation→Set Guide Lines→Lay Pre-applied Waterproof Membranes→Overlap Treatment→Detailing at Nodes→Reinforcing Steel Bar Binding→Concrete Pouring

Vertical Wall Installation:

Install Vertical Supports→Set Guide Lines→Lay Pre-applied Waterproof Membranes→Mechanical Fixing of Membrane→Overlap Treatment→Detailing at Nodes→Reinforcing Steel Bar Binding→Concrete Pouring

Tunnel Arch Construction:

Initial Surface Treatment of Primary Support → Laying and Fixing Geotextile→Lay Pre-applied Waterproof

Membranes→Overlap Treatment→Detailing at Nodes→Reinforcing Steel Bar Binding→Concrete Pouring.

Construction Key Point:

The membrane can be directly applied on "not fully cured concrete" or damp substrates without standing water. However, the substrate should be smooth, solid, and free of significant standing water. The long edges of the membrane should be joined using self-adhesive overlapping or welded overlapping edges, with an overlap width of 80mm or 100mm. The short edges should be joined using an 160mm wide butt joint adhesive tape or butt welding, ensuring that the overlapping areas at the ends of the membrane are staggered.

For vertical surface applications, mechanical fixing should be done every 400-600mm within 10-20mm from the edge of the self-adhesive strip, ensuring that the fixing points are completely covered by the membrane.

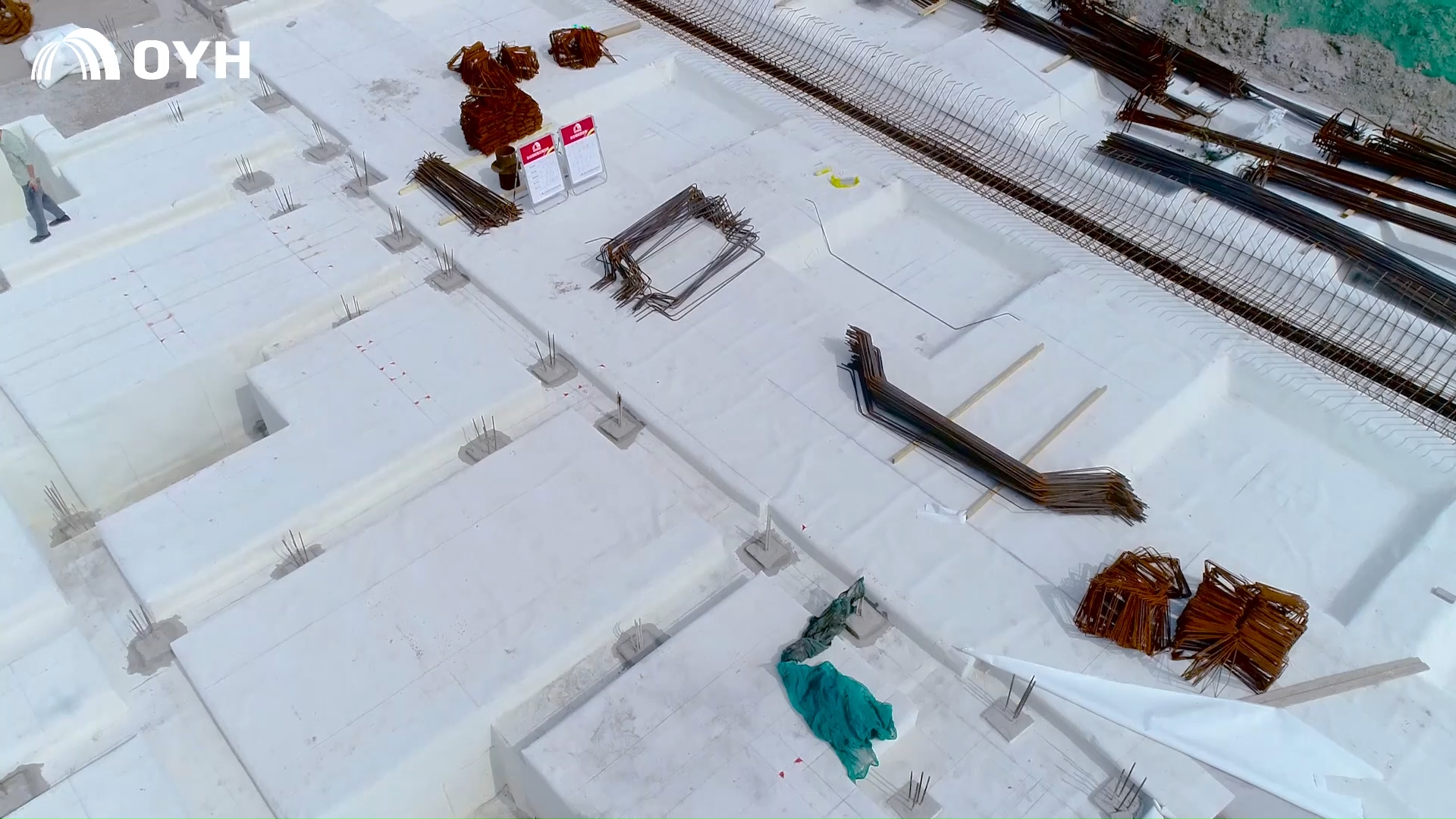

The reinforcing steel bars can be placed directly on top of the membrane without any protection, but attention should be taken not to damage the waterproofing layer. Concrete should be poured within 15 days after the membrane installation is completed.

Advantages

· Excellent mechanical properties, high tensile strength and puncture resistance.

· Full and permanent bond with post-poured concrete, no lateral water migration.

· Variety of overlapping methods, can be either bonded or welded.

· Allows maximum use of confined sites.

· Simplified construction procedures and reduced costs, no need for a protective concrete layer, directly tie the re-bar and pour the concrete, reducing the consumption of manpower, materials, and machinery.

· Efficient process and environmentally friendly, cold apply, no primer.

· Compatible with self-adhesive bitumen membrane and polyurethane used on side walls, ensuring construction quality is easy to maintain.

Scope of Application

PMH-3080 is suitable for various underground waterproofing projects, such as foundation slabs of underground structures in civil and industrial buildings, highway tunnels, railway tunnels, subway sections, cavern projects excavated using the mining method, underground waterproofing for nuclear island and non-nuclear island areas.

FAQ

What is a polymer pre-applied waterproofing membrane?

A polymer pre-applied waterproofing membrane is a waterproof sheet applied before the concrete pour. It bonds permanently to structural concrete, creating a secure barrier against water ingress.
Why should I choose a pre-applied membrane over traditional waterproofing systems?

Pre-applied membranes offer enhanced protection against water migration, improved durability, reduced risk of leaks due to their full adhesion to the structure and saved construction time, labor and expense.
How long does the membrane last?

Typically, these membranes are designed for a service life of 25–50 years, depending on the product and environmental conditions. For high quality product, such as PMH 3040/PLUS and PMH 3080/PLUS could last as long as the designed life of structure
