Description

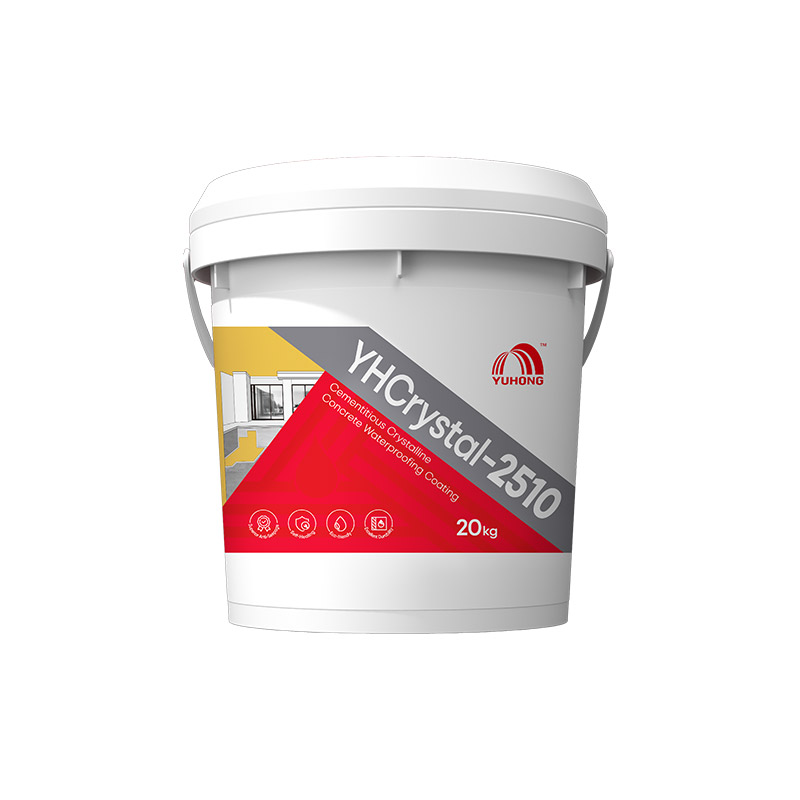

YHCrystal-2510 is a powdery, rigid waterproof material composed of special cement, quartz sand, and various active chemicals. The active chemical substances in the coating penetrate the concrete through water, catalyzing the formation of water-insoluble crystals within the concrete. This process fills and blocks capillary pores and microcracks, thereby densifying the concrete and significantly enhancing its impermeability, preventing water infiltration or seepage of water in the area if low pressure of concrete structure or any cementitious substrate.

Specifications

Packing and Specifications

Item Description
Package Size 20kg per bucket
Physical state Powder
Color Gray
Packaging Plastic bucket
Properties

Description Test Methods Typical Values
Depth of Penetration of Water Under 5 bar for 72hrs DIN 1048 Part 5: 1991 10mm

Application Information



Two construction methods can be used: Brushing method and dry powder sprinkling method.



1. Brushing Method Construction

Substrate Preparation: Remove floating slurry, efflorescence, dust, oil stains, and other debris from the substrate and roughen the surface to provide a fully open capillary system for better penetration. Finally, wash thoroughly with a high-pressure water jet. Thoroughly wet the substrate, keeping it moist but free of standing water.



Mixing: Use a weight ratio of powder to water of 1:(0.35-0.4). First, pour water into a container, then add the powder. Stir quickly and uniformly with a mechanical mixer. The prepared slurry should be used within 20minutes, and no additional water should be added during use.



Brushing Application: Apply evenly with a hard brush in multiple coats. After each coat, allow it to cure. Once the surface turns white, apply the next coat. If the interval between coats exceeds 12 hours, moisten the surface with a fine spray of water before applying the next coat.



2. Dry Powder Sprinkling Method Construction

Evenly sprinkle the powder at a dosage of 1.5 kg/m² on the surface of the concrete before it has completely set. Immediately use a wooden float or troweling machine to press the powder into the concrete and smooth the surface. Cure by spraying water mist or covering with wet cloths for no less than 72 hours, with 7 days being ideal.

Features & Benefits


· Migration of active components and crystalline formation to seal capillary network.

· Easy to apply.

· For positive and negative side waterproofing.

· Can seal hairline cracks.

· Good adhesion to concrete.

· Water vapour permeable.

· Highly resistant to harmful chemical erosion, enhancing the durability of the concrete.

· Environmentally friendly, non-toxic, and harmless, making it safe for use in drinking water projects.

·Self-repairing function, capable of quickly sealing cracks less than 0.4 mm.

Scope of Application

It is suitable for permanent anti-seepage and waterproofing projects for concrete structures in foundations, underground parking structures, basements, tunnels, underground subways, reservoirs, sewage water and effluent treatment plants, water tanks, sewers, elevator shafts, swimming pools, chemical plants, and other cement-based applications.
